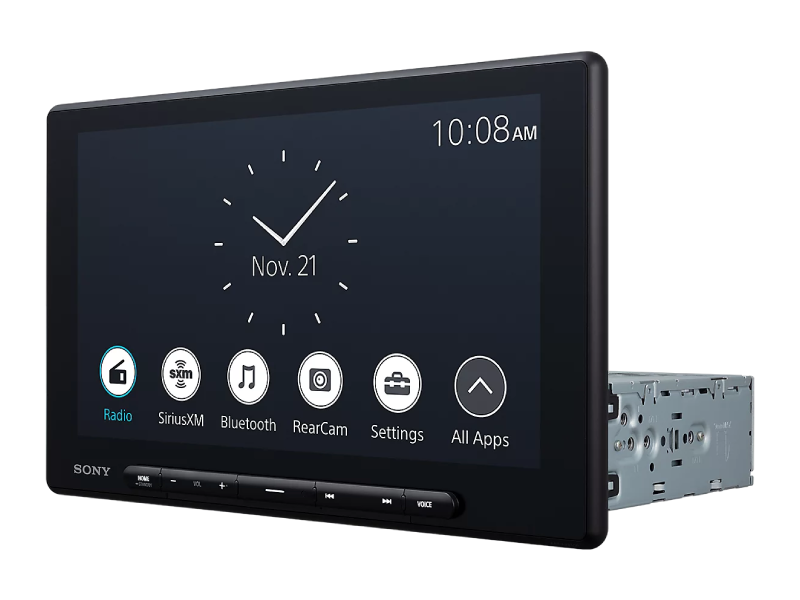

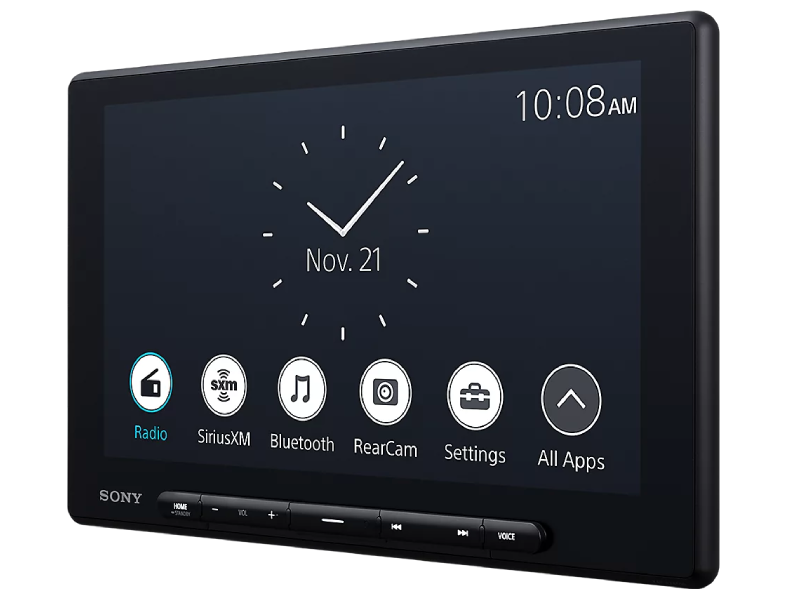

Sony 10.1 Inch Digital Multimedia Receiver - XAVAX8500
Big screen with updated flexibility
The XAV-AX8500 digital multimedia receiver features a 10.1 in (25.7 cm) capacitive HD touchscreen with an updated display joint featuring a new tilt and swivel mechanism. Together with both wireless and wired connectivity to your smartphone and various devices, and sound customization, it offers a safe and enjoyable driving experience.
Discover XAV-AX8500 features
Oversized high-definition display
An optically gapless 10.1 in (25.7 cm) high-definition LCD panel offers enhanced picture quality, and its clean interface enables safer and easier operation than ever.
Easily adjustable tilt and swivel
The newly designed tilt and swivel mechanism lets you manually adjust the oversized high-definition display’s viewing angles. The display joint’s screw-less structure gives you a range of ±15 degrees, both horizontally and vertically, with no tools required—even after installation.
HDMI Input
HDMI connectivity allows you to hook up an external audio and visual source device or a compatible smartphone, so you can view your favourite content when your car is parked.
Fully wireless smartphone connectivity
Thanks to a Wi-Fi® connection to your smartphone, together with the supplied GPS antenna, you can use voice control to navigate, communicate and play music on the road even with your device in your pocket012.
Sound customization
The built-in DSP offers sound processing and time alignment—down to a remarkable 1 cm for each of the five addressable channels (four speakers and subwoofer via pre-out). A 14-band EQ lets you adjust the overall sound to your music or taste, and with the three-zone crossover, you can arrange the perfect match of front, rear and subwoofers.
General Features | |
---|---|
EQUALIZER | 14-band Equalizer |
FIRMWARE UPGRADABILITY | Yes |
OUTPUT POWER | 55 W x4 |
PRE OUT | 5V 3-Pre (Front LR / Rear LR / Sub x 1) |
REAR VIEW CAMERA IN | Rear/Input 1/Input 2 |
TIME ALIGNMENT | Yes |
USB | Yes (Type-C x 1, REAR) |
ALBUM ARTWORK INDICATION | Yes |
Tuner Features | |
AUTO MEMORY | BTM |
PRESET | FM18/AM12 |
RDS/EON | Yes (RBDS) |
Bluetooth Profile | |
A2DP | Yes (1.3.1) |
AVRCP | Yes (1.6.1) |
HFP | Yes (1.7.1) |
PBAP | Yes (1.1) |
Bluetooth Features | |
ALPHABETICAL PHONEBOOK SORTING | Yes |
BATTERY REMINDER | Yes |
CALL VOLUME LEVEL CONTROL | Yes |
EXTERNAL MICROPHONE | Supplied |
LAST DIALED CALL | Yes (select from the dialed call history) |
PHONEBOOK ACCESS VIA PBAP | Yes |
RECENT CALLS (# OF) | Yes |
RING VOLUME LEVEL CONTROL | Yes |
SIGNAL STRENGTH INDICATION | Yes |
SPEED DIAL | Yes (6 memories) |
Bluetooth Audio Features | |
AUDIO CODEC (BLUETOOTH AUDIO) | SBC/AAC/LDAC |
AUDIO LEVEL ADJUSTMENT | Yes (–6 dB to +6 dB) |
CUE/REV | Yes |
GROUP (FOLDER) +/- | Yes |
META DATA INDICATION | Yes |
PAUSE (BLUETOOTH AUDIO) | Yes |
REPEAT CONTROL (AUDIO DEVICE SIDE) | Yes |
SHUFFLE CONTROL (AUDIO DEVICE SIDE) | Yes |
TRACK +/- | Yes |
Panel Design | |
KEY ILLUMINATION | Yes (White) |
Monitor(AVC) | |
BRIGHTNESS | 425 cd/m2 |
DIMMER | Auto/Manual select |
LCD TYPE | TFT Active Matrix |
RESOLUTION (DOT) | 1280 x 720 |
SCREEN ASPECT | 16:9 |
SCREEN DIAGONAL (INCH/CM) | 10.1 inches/25.7 cm |
Display Panel | |
DIMMER ADJUST | Yes |
User Interface | |
PARKING CONTROL | Yes |
PARKING LINE ADJUST | Yes |
REAR VIEW CAMERA-IN MARKER SETTING | Yes |
TOUCH PANEL | Yes/Capacitive |
USB Mass Storage Device Control Feature | |
USB DEVICE CONTROL (AUDIO CODEC) | MP3/WMA/WAV/AAC/FLAC/ALAC/DSF/DSDIFF |
USB DEVICE CONTROL (AUDIO PLAYABLE FILE EXTENSION) | .mp3/.wma/.wav/.m4a/.mp4/.flac/.m4a/.mp4/.dsf/.dff |
USB DEVICE CONTROL (PAUSE) | Yes |
USB DEVICE CONTROL (REPEAT) | TRACK/FOLDER/DRIVE |
USB DEVICE CONTROL (RESUME PLAY) | Yes |
USB DEVICE CONTROL (SHUFFLE) | OFF/FOLDER/DEVICE |
USB DEVICE CONTROL (VIDEO CODEC) | ASF/WMV/AVI/MKV/MPEG-4 |
USB DEVICE CONTROL (VIDEO PLAYABLE FILE EXTENSION) | .asf/.wmv/.avi/.mkv/.mp4 |
Multi-Language | |
CAUTION | English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch |
MENU | English/Spanish/French/German/Italian/Russian/Portuguese/Simplified Chinese/Traditional Chinese/Korean/Dutch |
Size & Weight | |
WEIGHT | 2.6 kg |
DIMENSIONS (W X H X D) | 269 x 167 x 258 mm |
SUMMARY | |
WHAT’S IN THE BOX | Connection Cables (Audio/Camera), External Microphone, GPS Antenna, Power Supply Leads, USB Extension Cable (Type-C), Warranty Card |
