The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.
Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.
2 x 50 Watts of robust Class AB power, 8 Ohms
Includes remote control
Moving Magnet Phono input for turntable connection
Bluetooth with aptX™ HD and AAC
Texas Instruments Digital to Analog Converter
Engineered with care.
Product Description
The A11MKII Integrated Amplifier offers an ideal combination of power and connectivity for the music lover seeking to elevate their listening experience.
Constructed around a linear power supply featuring a massive Rotel-built toroidal power transformer, the A11MKII delivers an authoritative 50 Watts per channel of Class A/B power into 8 ohms, and even higher power into demanding loudspeakers.

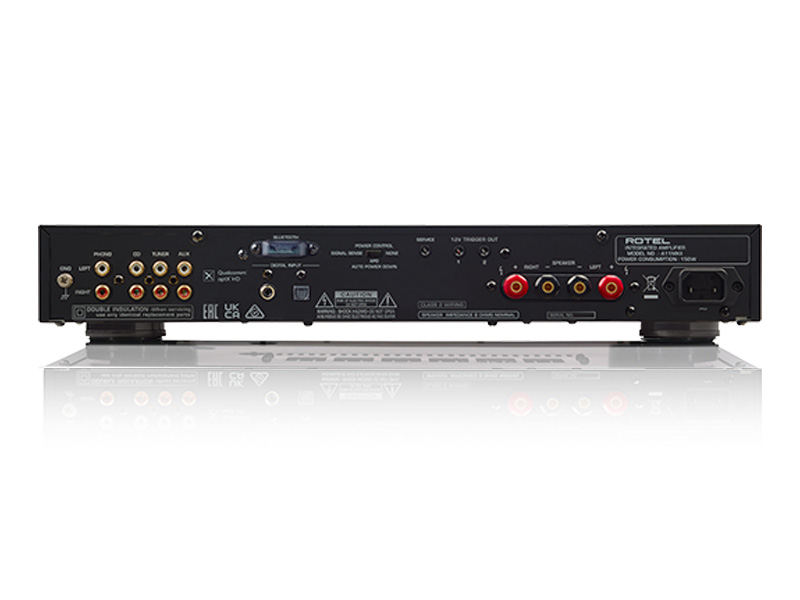

Both analog and digital sources are welcome, with three line-level RCA inputs, coaxial and optical digital inputs, a Moving Magnet Phono stage, and aptX™ HD Bluetooth. An 1/8” headphone jack with dedicated headphone amplifier circuit is provided on the front panel for private listening sessions.
The intuitive front panel layout includes Bass, Treble, and Balance rotary controls and source input selection ensuring the A11MKII is personal and a pleasure to operate up close. The included IR remote drives a motorized analog volume controller for ease of use at the listening position.
The A11MKII is available in both black and silver colors.
| Specifications | |
|---|---|
| TONE CONTROLS | ±6dB at 100Hz / 10kHz |
| INPUT OVERLOAD | Line Level Inputs: 4V, Phono Input: 50mV |
| INPUT IMPEDANCE | Line Level Inputs: 45kΩ, Phono Input (MM): 43kΩ |
| DAMPING FACTOR | 120 |
| INPUT SENSITIVITY | Line Level Inputs: 130mV, Phono Input (MM): 1.6mV |
| INTERMODULATION DISTORTION (60Hz:7kHz, 4:1) | <0.03% |
| FREQUENCY RESPONSE | Line Level Inputs: 10Hz - 100kHz, -0.5dB, +0.05dB , Phono Input: 20Hz - 20kHz, -0.5dB, +0.3dB |
| S/N RATIO (IHF "A" Weighted) | Line Level Inputs: 90dB, Phono Input: 85dB |
| TOTAL HARMONIC DISTORTION (THD) | <0.03% |
| POWER OUTPUT | 50W/Ch (8Ω), 62W/Ch (4Ω) |
| POWER CONSUMPTION | 150W |
| STANDBY POWER CONSUMPTION | <0.5W |
| NET WEIGHT | 6.8kg (15lbs.) |
| BTU RATING (4Ω, 1/8th power) | 450 BTU/h |
| POWER REQUIREMENTS | 120V, 60Hz |
| DIMENSIONS (W × H × D) | 430 x 73 x 347 mm / 17” x 2 7/8” x 13 5/8” |
| FRONT PANEL HEIGHT | 60 mm / 2 3/8” |
