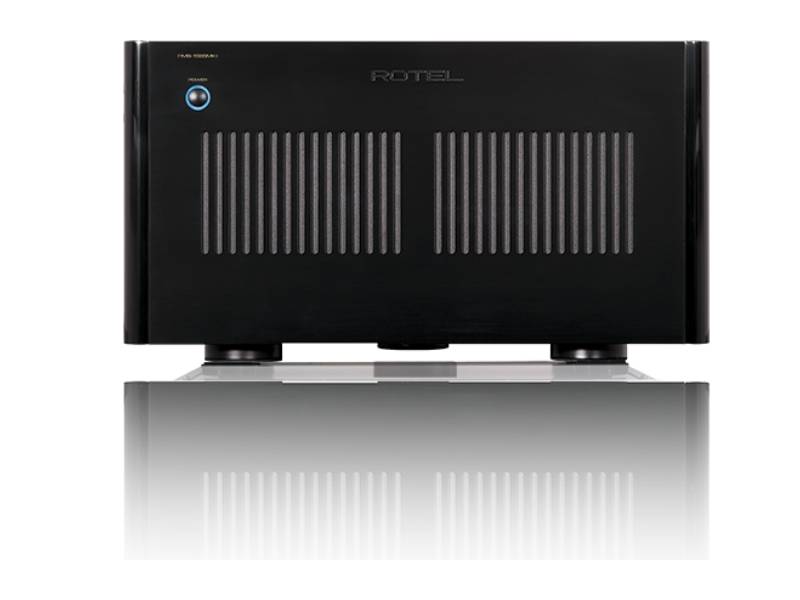

Rotel 5 Channel Amplifier in Black - RMB1585MK2B
You may also like
Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high power, audiophile performance amplifiers for multi-channel systems.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
Engineered with care.
- DIMENSIONS (W × H × D): 431 × 237 × 456mm ,17" × 9.4" × 18"
- FRONT PANEL HEIGHT: 5U / 221mm (8.75")
- POWER REQUIREMENTS: 120V, 60Hz
- POWER CONSUMPTION: 1200W
- NET WEIGHT: 37.4kg (82lbs.)
- BTU RATING (4Ω, 1/8th power): 3317 BTU/h
CONTINUOUS POWER OUTPUT:
- 210W/Ch (5 channels driven, 8Ω)
- 340W/Ch (5 channels driven, 4Ω)
- 440W/Ch (2 channels driven, 4Ω)
TOTAL HARMONIC DISTORTION (THD)
- <0.03%
FREQUENCY RESPONSE
- 10Hz - 100kHz, +0.1, -0.3dB
S/N RATIO (IHF "A" Weighted)
- 120dB
GAIN
- 26.9dB
Product Description
Rotel’s new RMB-1585MKII 5-channel amplifier continues our heritage of producing high powered, audiophile performance amplifiers for multi-channel systems.

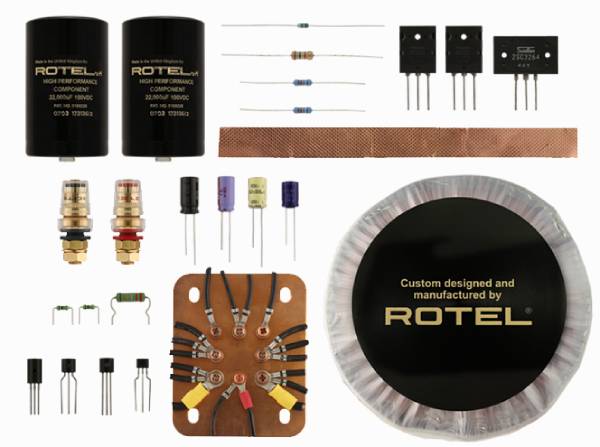

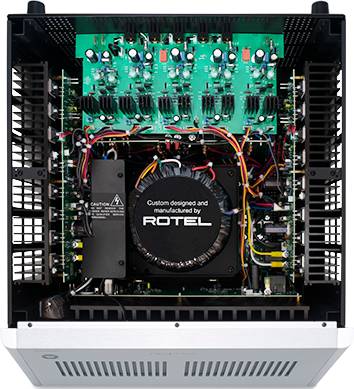

Following Rotel's updated MKII design architecture, the RMB-1585MKII incorporates both circuit and component upgrades in the power supply and amplifier stages to delivering ultra-low distortion, signal isolation, and high-gain output power efficiently packaged in a single, multi-channel amplifier chassis.
The RMB-1585MKII delivers unparalleled performance with 5-channels of Rotel Class AB amplification rated at 210 Watts per channel into 8 ohms and an impressive 340 Watts per channel into 4 ohms with all channels driven.
The RMB-1585MKII is available in both black and silver colors.
| INPUT IMPEDANCE | |
|---|---|
| Balanced: | 50kΩ |
| Unbalanced: | 12kΩ |
| INPUT SENSITIVITY | |
| Balanced: | 4.7V |
| Unbalanced: | 1.89V |
| Specifications | |
| CROSSTALK/ SEPARATION | > 55 db |
| DAMPING FACTOR (1kHz, 8Ω) | 223 |
| INTERMODULATION DISTORTION (60Hz:7kHz, 4:1) | <0.03% |
