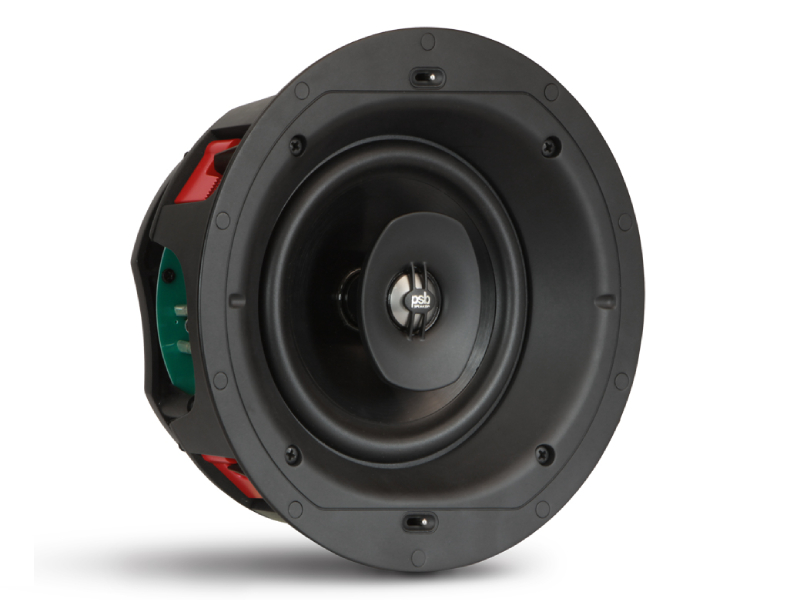

PSB Speakers 6 Inch Premium In-Ceiling Speaker - CS650

SKU : CS650

$649.00
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

Performance Two-Way In-Ceiling Speaker

Ideal in listening areas or home theaters, the premium woofer of the CS650 pays huge dividends in bass output and extension. This woofer includes a few of the tricks PSB has developed for its premium Imagine T3 speaker to get higher sensitivity and lower harmonic distortion at high playback levels, with an upgraded 1″ (25mm) titanium tweeter with Wave Guide and indexed adjustment for precise adjustment of the tweeters acoustic axis.

This superb group of architectural speakers embody over 40 years of cutting edge research in the field of acoustics and loudspeaker design. Musical, refined, and nearly invisible, these speakers can create a beautiful ambience, even in larger spaces. Because their sonic signature is identical to other PSB speakers, these CS600’s can integrate perfectly as part of home theatres or as the soundtrack of the connected home. Since PSB has in-room, on-wall, outdoor, in-wall and in-ceiling designs at many different price points, it makes it easy to specify an audio system that you know will turn out right, be easy to specify and install, and will absolutely thrill even your most discriminating clients. There are three models in this series, and all feature frameless magnetic grilles with invisible scrims. Both round and square grilles are provided, simplifying and reducing your inventory requirements. Each model features an improved, simple, foolproof mounting system using heavy duty doglegs. Cutting templates are included. Pre-construction brackets and backcans are also available.

CS650 Premium 2-way In-Ceiling Speaker

For primary listening areas or very large rooms, the premium woofer of the CS650 pays huge dividends in bass output and extension. This woofer includes a few of the tricks PSB has developed for its top-of-the-line Imagine T3 speaker to get higher sensitivity and lower harmonic distortion at high playback levels. It retains all of the other features and advantages of its more affordable little brother, with an upgraded 1″ (25mm) titanium tweeter with Wave Guide and indexed adjustment for precise adjustment of the tweeters acoustic axis. Also featured are acoustic adjustments for the mid/woofer and tweeter level.

Dimensions / Weights / Finish
Weight4.6lb (2.1kg)/each
FinishWhite
Size (W x H x D)Cutout Diameter – 8 3/8” * (212mm), Mounting Depth – 4 1/2″ * (114mm), Round Grille Diameter – 9 7/16″ * (240mm), Square Grille Size – 9 1/2″ * (241mm)
Acoustic Design
Design TypeOpen Back
Crossover1800Hz, LR4
Woofer (Nominal)6 1/2” (165mm) Fiber filled Injection Moulded Polypropylene Cone Rubber Surround
Tweeter (Nominal)1” (25mm) Titanium Dome with Ferrofluid
FREQUENCY RESPONSE
On Axis @ 0° ±3dB48-20,000Hz
Sensitivity
Anechoic Chamber86dB
Listening Room88dB
Impedance
Nominal6 Ohms
Minimum4 Ohms
Input Power
Recommended10 – 100 Watts
