Muscular Monitor MRW-10-W MW10W (Each)

SKU : MW10W

$699.00
Free Shipping

Literature

Monitor MRW-10
The muscular Monitor MRW-10 powered subwoofer delivers a thunderous bass down to below 30 Hz and offers a totally immersive movie, music, or gaming experience.

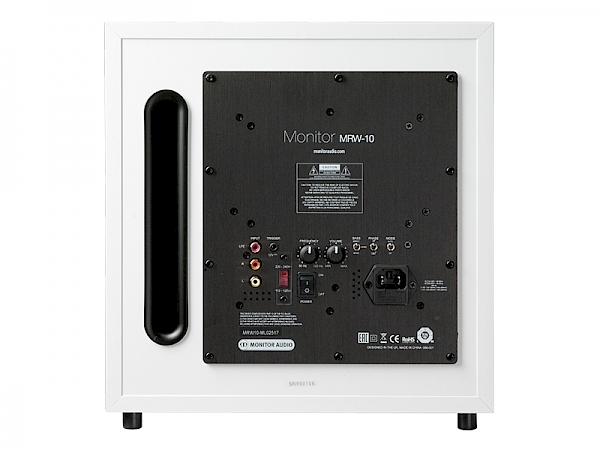

The Monitor MRW-10’s rigid cabinet is made from 18 mm thick MDF and accommodates a 10" long-throw MMP II bass driver and a rear port that allows optimal output from the powerful on-board 100 W class D power amplifier.

The Monitor MRW-10 boasts an array of features dedicated to optimising a home theatre system. There are three pre-set EQ mode settings (Music, Movie, Impact) to offer a level of adjustment for all rooms and tastes, and the controls use an advanced DSP based architecture to provide the ultimate in audio flexibility.

Monitor MRW-10 Key Features

  • 10" MMP II long throw subwoofer driver
  • Rigid MDF cabinet with rear porting
  • Powerful 100 W Class D power amplifier – high efficiency and punchy bass delivery
  • Switch mode power supply, designed to deliver high continuous rating and provides the instantaneous delivery of high current when required
  • DSP processing with all control features and crossover performed in the digital domain
  • Three pre-set EQ mode settings. Music / Movie / Impact
  • 12 V trigger – provides switching control from AV amp, processor, or home automation control system
  • 18 mm thick MDF construction

Specifications
System FormatRear ported bass reflex cabinet
Lower Frequency Limit30 Hz (-6 dB)
Upper Frequency LimitVariable 50 – 120 Hz @ 24 dB/Octave
Amplifier Output100 W RMS
Amplifier ClassificationClass D with Switch mode PSU
Bass EQ ProfilesMusic / Movie / Impact
Phase Control0 – 180°
Auto Sensing>3.5 mV
Input Level RequirementsStandby after approximately 15 minutes if no signal sensed
Drive Unit Complement1 x 10" MMP II long throw driver
Input Impedance>20 K ohms
Mains Input Voltage110 – 120 Vac – 50 – 60 Hz 220 – 240 Vac – 50 – 60 Hz. Selectable
Fuse Specification110 – 120 VAC – T4AL/250VAC 220 – 240 VAC – T4AL/250VAC
Connection2 x Stereo RCA, 1 x LFE RCA connection 12 V trigger (3.5 mm mono mini-jack)
External Dimensions (Including Grille & Feet (H x W x D))336 x 320 x 350.6 mm (13 1/4 x 12 5/8 x 13 13/16")
Standby Power Consumption<0.5 W standby
Weight10.54 kg (23 lb 4 oz)
