Monitor Audio Invisible Wall Speaker IV140 (each)
You may also like
IV140
The Monitor Audio IV140 invisible speaker is designed to deliver ‘best in class’ audio performance in concealed in-wall and in-ceiling applications.
Concealed in-wall or in-ceilings, the speaker fits into all conventional 4" stud bays, leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight, with paint, light wallpaper or fabric hiding it from view.
A large low-frequency transducer and two high frequency transducers provide punchy, high power bass and sound vibration. This two-way transducer design also features an integrated crossover to generate a wider frequency range and deliver crystal clear sound quality with smoother overall balance and character.

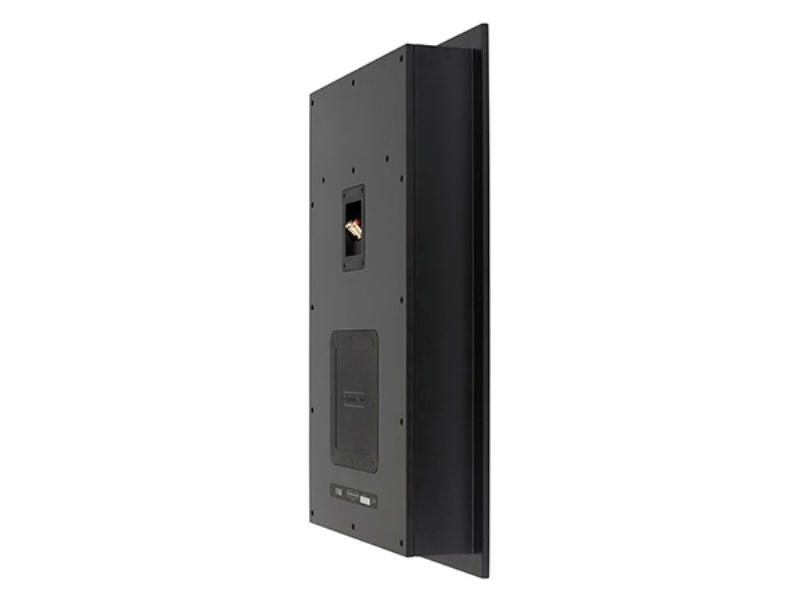

An integrated back box design isolates sound and ensures consistent, controlled performance. This rigid back box reduces sound emitted from the rear of the speaker, minimising leakage into other rooms.
Monitor Audio’s IV140 is protected against overload by automatic re-setting circuit breakers (PTC). These will attenuate output for a specific time period to allow the system to cool until normal operation can safely resume.
Technology
- 2-way system with integrated crossover
- Pre-construction speaker designed to be plastered in to create ‘invisible’ appearance
- Low-frequency transducer, featuring high power ceramic magnetics and 40 mm voice coil
- Dual High-frequency transducers, incorporating high power Neo magnets and 30 mm voice coils
- Rigid MDF back box construction
- Integrated ‘hybrid’ controlled performance back box system – Fully sealed or open-back
- High Quality crossover – including metallised film capacitors and low loss steel core inductors
- Protected against overload by PTC’s (automatically re-setting breakers)
- Ideal for home cinema, distributed audio, hospitality, retail and commercial background music applications (where visible discretion is key)
| Specifications | |
|---|---|
| Frequency Response (-6 dB) | 75 Hz — 18 kHz (CP sealed) 55 Hz — 18 kHz (Open back) |
| Sensitivity (1W@1M) | 82 dB (when installed as directed) |
| Nominal Impedance | 8 ohms |
| Maximum SPL | 102.8 dBA |
| Power Handling (RMS) | 50 Watts (full range – IEC268-5 rating) 100 Watts Music program (Using Minimum 80Hz High Pass filter) |
| Recommended Amplifier Requirements | 20-50 Watts (full range) 20-100 Watts (Using Minimum 80 Hz High Pass filter) |
| Drive Unit Complement | 1 x Low-Frequency transducer 2 x High-Frequency transducer |
| Overall Dimensions | 350.5 x 591 mm |
| Overall Depth | 95.5 mm |
| Cut-Out Dimensions | 401.5 x 642 mm |
| Mounting Depth | 83.5 mm |
| Connection | Sprung push type terminals – Gold plated |
| Specifications | Fixing Type Self-tapping screw |
| Construction Material | 9 mm MDF |
| Colour / Finish | Black painted, white membrane |
