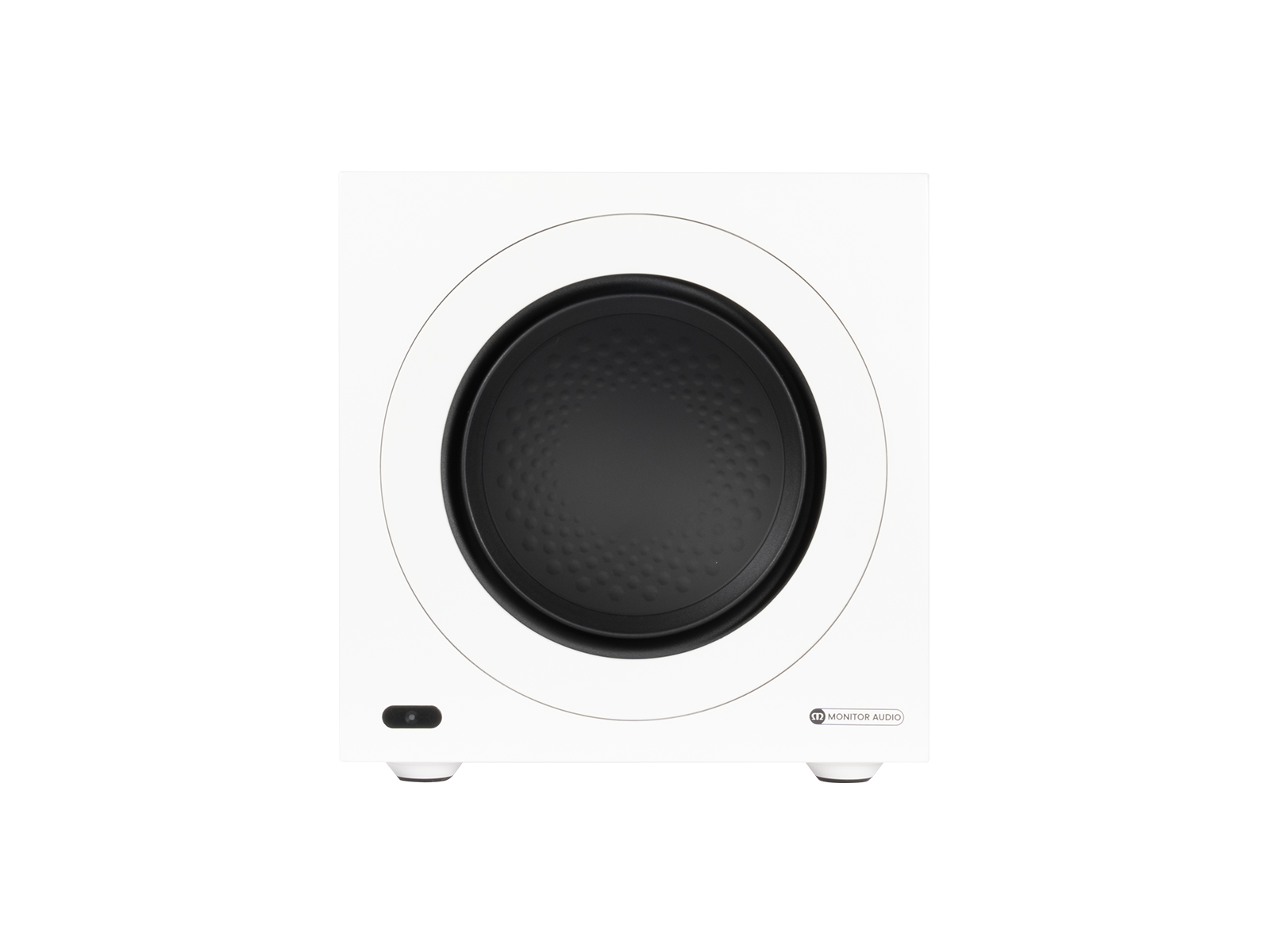

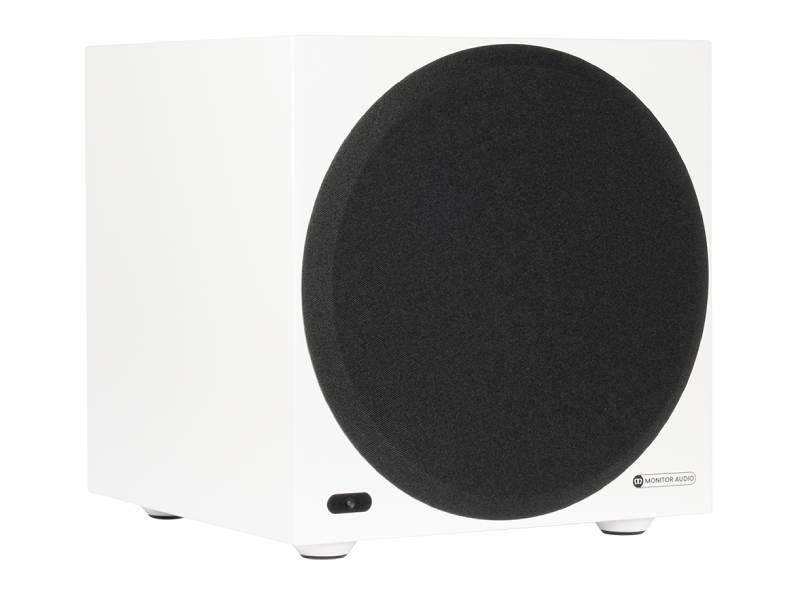

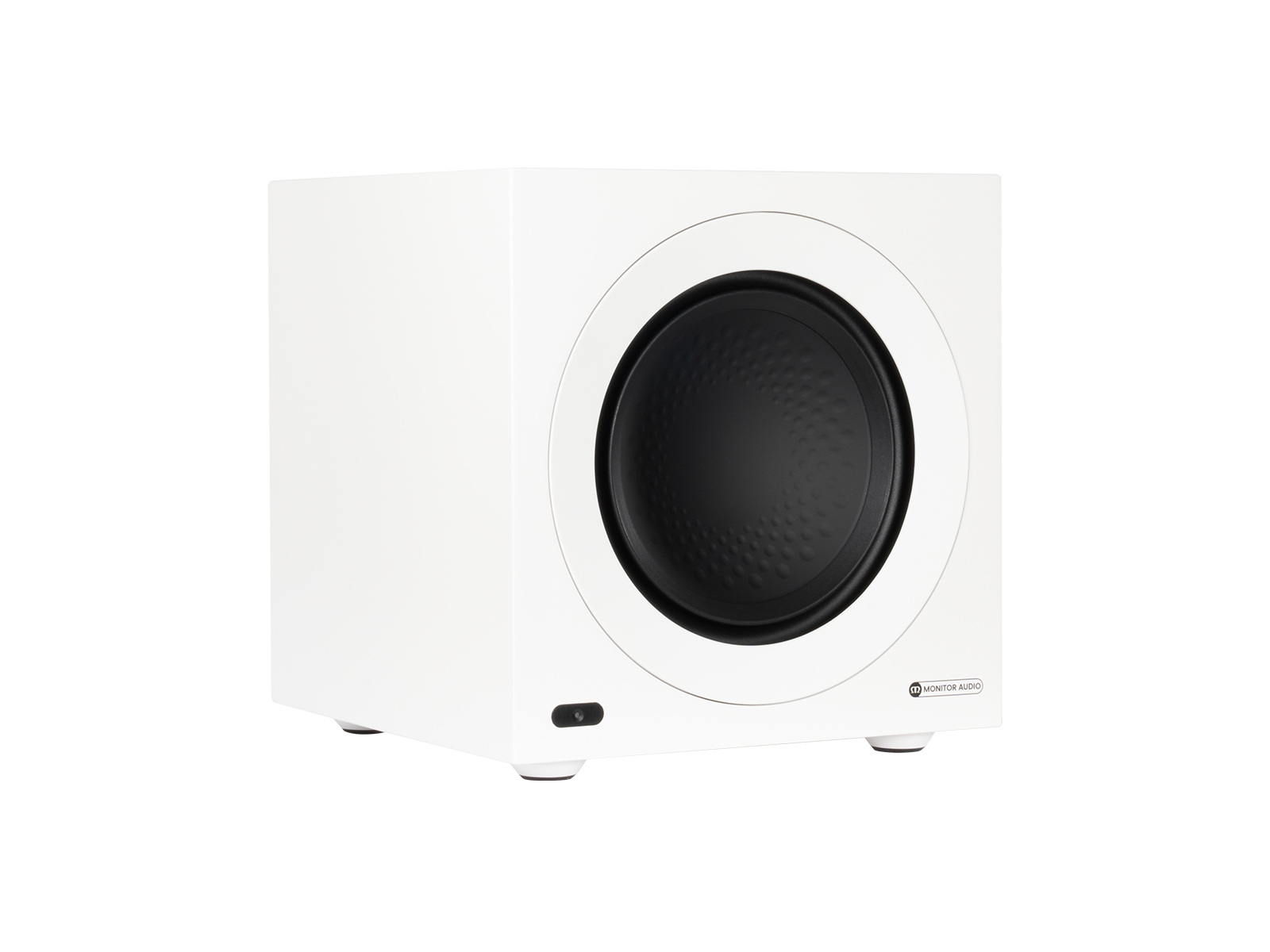

Monitor Audio Anthra W10 Subwoofer In Satin White - ANTHW10WU
Monitor Audio Anthra W10 Subwoofer In Satin White - ANTHW10WU
Monitor Audio Anthra W10 Subwoofer In High Gloss Black - ANTHW10BGU
You may also like
The W10 is the most compact model within the Anthra subwoofer series. It features a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver powered by a Class-D 500 Watt amplifier, housed within a comprehensively internally braced, sealed-box cabinet.
Engineered to deliver deep, agile bass in small to mid-sized spaces, the Anthra W10 subwoofer features a 500 Watt Class-D amplifier driving a 10” (25 cm) Rigid Surface Technology II (RST II) C-CAM high-excursion driver. The W10 can be used on its own or linked with up to three other Anthra subwoofers for a truly immersive, ultra-dynamic listening experience.
A full-colour LCD display and rotatory dial is located on the back panel, to allow for basic subwoofer setup and EQ preset selection, while advanced features including DSP configuration and multi-sub connectivity setup are available via the MaestroUnite app.
Key Features
- 1 x 10” (25cm) Rigid Surface Technology II (RST II) and ceramic-coated aluminium magnesium (C-CAM) high-excursion driver for super-clean performance
- 1 x 500 Watt Class-D amplifier ensures that the driver is working to its optimum performance level, no matter what the volume
- Massive motor assembles and longer round-wound voice coils, which are dual layered and made of copper-coated aluminium wire (CCAW) for precise control at extreme low frequencies
- 2 inch full-colour LCD display screen with rotary dial for menu selection and basic setup
- RCA inputs (left/right. The left Input is LFE)
- RCA outputs allows daisy chain of up to 4 Anthra subwoofers
- XLR inputs for professional installation connectivity option
- XLR outputs allows daisy chain of up to four Anthra subwoofers
- Available in Gloss Black and Satin White finishes
| Specifications | |
|---|---|
| Drive Unit Complement | 1x 10" (254 mm) High Linear-Excusion Triple Suspension Driver |
| System Format | Active – Sealed Cabinet |
| Amplifier Classification | High-Efficiency Class-D |
| Lower Frequency Limit | -6dB @17Hz |
| Upper Frequency Limit | (LPF Off) -6dB @400Hz |
| Driver Excursion (pk-pk) | 50 mm |
| DSP | 28 Bit 50 MIPS Configuratable through MaestroUnite |
| Analogue Digital Conversion | Autoranging Input which combines a 10Vrms maximum input with low signal to noise for small signals |
| Amplifier Output Power, 240Vac | Instantaneous: 500 W* Continuous short-term: 425 W** |
| Amplifier Output Power, 120Vac | Instantaneous: 450 W Continuous short-term: 390 W |
| LED UI Control | Brightness, On-Off |
| Phase Control | 0-360 Degrees measured at LPF Crossover |
| Low Pass Filter | 20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct |
| Custom EQ | Configurable through MaestroUnite;3 pre-defined EQ curves plus 3 custom EQ curves each with 8 band custom EQ supporting (Peaking, High Shelf, Low Shelf, High Pass) |
| Volume Level | Wide adjustable input gain to allow maximum output from a wide range of input signals |
| Inputs | Stereo Unbalanced RCA (or mono/LFE using only connector marked LFE)Mono/LFE Balanced XLR |
| Outputs | Stereo unbalanced outputs with unbuffered throughput from RCA Inputs Mono/LFE Balaned XLR outputs with unbuffered throughput from XLR Input |
| Mains Input Voltage | Universal Mains, 85-265VAC |
| External Dimensions (without feet) (HxWxD) | 321 x 321 x 321 mm |
| Power Consumption | 120 W |
| Cabinet Construction | Braced 18 mm thick MDF with 36 mm front baffle |
| Grille | Cloth covered magnetically attached Grilles |
| Weight | 22.2 kg |
