W1v3 8-inch Subwoofer Driver (150 W, 4 Ω)

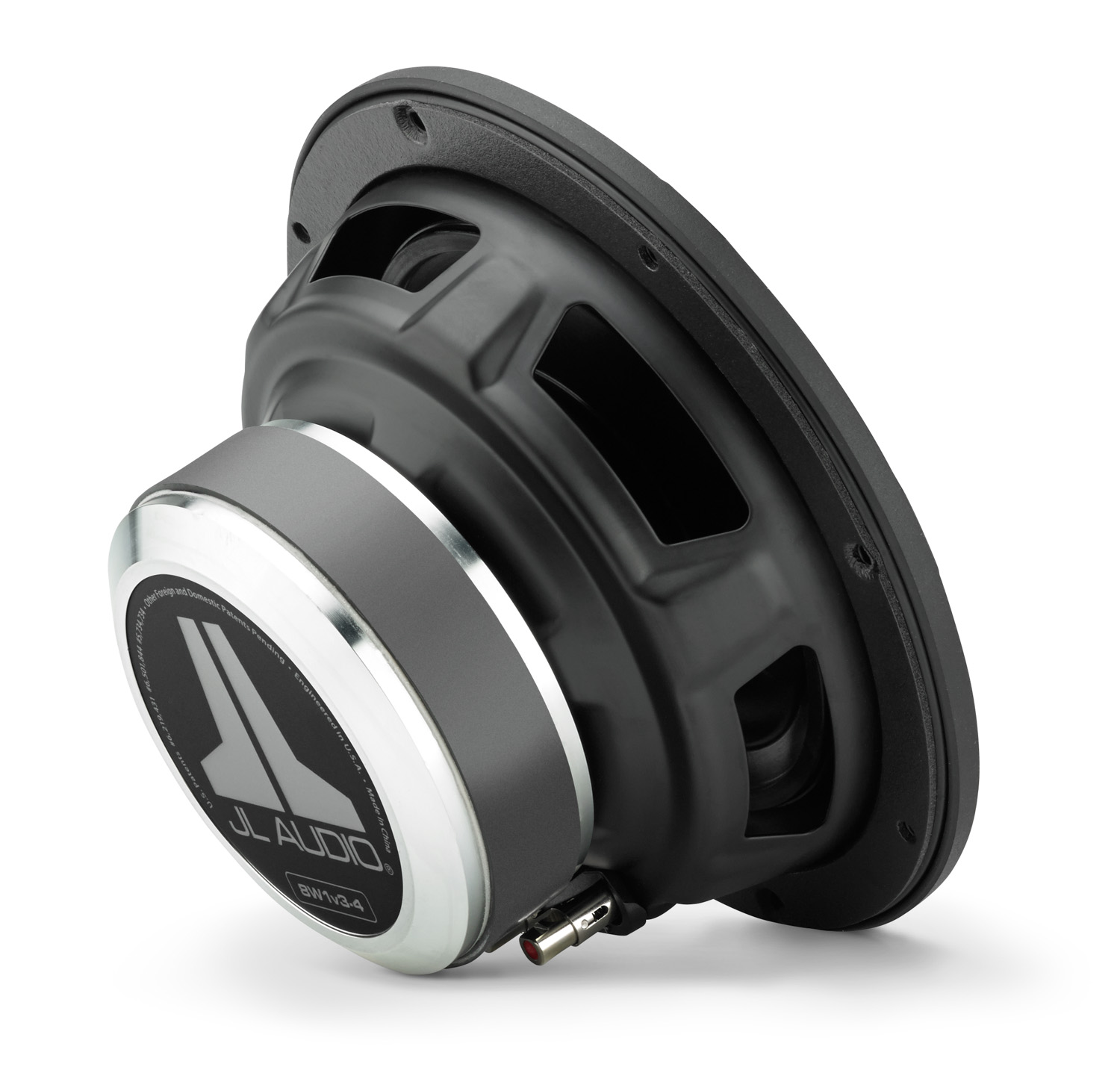

The 8W1v3 is an outstanding choice when space is very tight and amplifier power is moderate. It features shallow mounting depth (3.86 in. / 98 mm) and a compact motor structure, allowing it to comfortably fit in a lot of spaces where a typical 8-inch driver will not. Lacking a pole vent, the rear of the motor structure can be placed directly against an enclosure boundary. Excellent excursion capability and linearity allow it to reproduce sub-bass with shocking extension and quality. Several of JL Audio's proprietary technologies enhance its performance and reliability.
The 8W1v3-2 is best used with amplifier power in the 50W - 150W range and is optimized to operate in a compact 0.350 cu. ft. (9.90 l) sealed enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
| Specification | |
|---|---|
| Continuous Power Handling (RMS) | 150 W |
| Recommended Amplifier Power (RMS) | 50 - 150 W |
| Nominal Impedance (Znom) | 4 Ω |
| Parameters | |
| Free Air Resonance (Fs) | 35.40 Hz |
| Electrical “Q” (Qes) | 0.451 |
| Mechanical “Q” (Qms) | 5.791 |
| Total Speaker “Q” (Qts) | 0.418 |
| Equivalent Compliance (Vas) | 0.68 cu ft / 19.26 L |
| One-Way Linear Excursion (Xmax)* | 0.3 in / 8 mm |
| Reference Efficiency (no) | 0.18% |
| Efficiency (1 W / 1 m)** | 84.8 dB SPL |
| Effective Piston Area (Sd) | 32.67 sq in / 0.0211 sq m |
| DC Resistance (Re) | 4.06 Ω |
