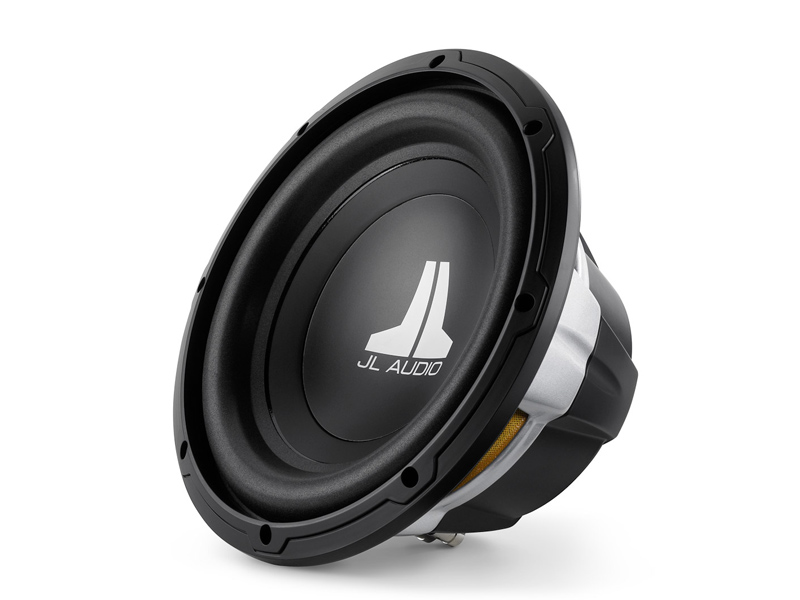

JL Audio 10-inch Subwoofer Driver, 4 Ω 10W0v3-4
$149.00
Save $70.95
Sale Ends 31st December 2024
Literature
You may also like
W0v3 10-inch Subwoofer Driver (300 W, 4 Ω)
The 10W0v3 is a rugged performer with excellent excursion capability and linearity and an overall performance envelope that puts it right at the top of its price class. It features a beefy 2 in. diameter voice coil and our patented Elevated Frame Cooling design for enhanced power handling and reliability.
The 10W0v3 is best used with amplifier power in the 75W - 300W range and is optimized to operate in a compact 0.65 cu. ft. (18.4 l) sealed enclosure, or a 1.125 cu. ft. (31.9 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.
| Parameters | |
|---|---|
| Reference Efficiency (no) | 0.15% |
| One-Way Linear Excursion (Xmax)* | 0.45 in / 11.4 mm |
| Equivalent Compliance (Vas) | 1.095 cu ft / 31.01 L |
| Total Speaker “Q” (Qts) | 0.604 |
| Mechanical “Q” (Qms) | 10.752 |
| Electrical “Q” (Qes) | 0.64 |
| Free Air Resonance (Fs) | 32.09 Hz |
| DC Resistance (Re) | 4.280 Ω |
| Effective Piston Area (Sd) | 48.909 sq in / 0.0316 sq m |
| Efficiency (1 W / 1 m)** | 84.07 dB SPL |
| Specification | |
| Nominal Impedance (Znom) | 4 Ω |
| Recommended Amplifier Power (RMS) | 75 - 300 W |
| Continuous Power Handling (RMS) | 300 W |
