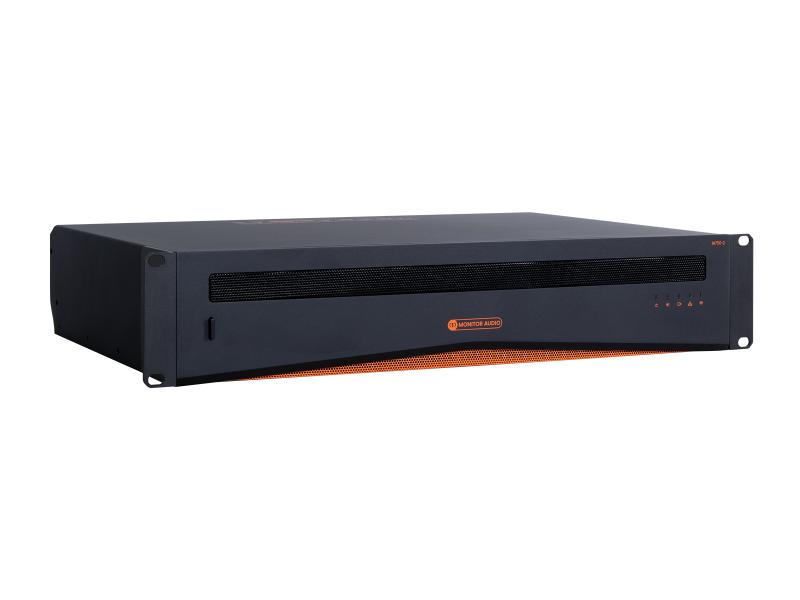

Monitor Audio Installation Amplifier - IA7502
You may also like
The IA750-2 high-power amplifier with advanced DSP is easy to set up and control. It delivers two channels of 750 W of power from a robust 2U full width design.
The IA750-2 is perfect for larger installations and outdoor systems. It offers two channels of 750 W each, plus it is ideal for subwoofer installations, where it can deliver 1500 W to Monitor Audio’s Cinergy Sub15. A 2U full width high power amplifier, it features full DSP matrix configuration using a web app configurator and is a breeze to install and use.
Note: Rack installation kit included.
18/03/24 - Download firmware V1.6.2 from this link. This has a number of bug fixes and feature improvements. For a full list of these and instructions on what to do, please download our guide from this link.
Key Features
- 2 x 750 W
- Fully customisable DSP amplifier with web configurator
- Full width 2U rack format
- High performance Class D amplifiers ensure excellent power and sound delivery
- Supports 70/100V line level speakers
| Specifications | |
|---|---|
| Channels | 2 |
| Output Power @ 2 Ohms | 2 x 750W SE |
| Output Power @ 4 Ohm | 2 x 750W SE, 1 x 1500W BTL |
| Output Power @ 8 Ohm | 2 x 400W SE, 1 x 1500W BTL |
| Output Power @ 70V | 1 x 1200W BTL |
| Output Power @ 100V | 1 x 1500 W BTL |
| Maximum Total Output Power, all channels driven | 1500 W |
| Power Consumption | 350 W |
| Thermal Output | 1200 BTU |
| Polarity (Default) | Non-inverting |
| Dimensions | 88 x 440 x 329 mm (36/16 x 175/16 x 1215/16”) |
| Output Voltage | 80Vp / 160Vpp (SE unloaded), 160Vp / 320Vpp (BTL unloaded) |
| Signal to Noise Ratio | >108dB (A-weighted, 20Hz – 20kHz, 8 Ohm load) |
| THD+N (typical) | <0.05% (20 Hz – 20 kHz, 8 Ohm load, 3db below rated power) |
| Frequency Response | +0/-0.25dB 20Hz – 20kHz (8 Ohm load, 3dB below rated power |
| Protection Circuits | Short circuit -, DC, Undervoltage -, Temperature – and Overload protection |
| Power Supply | Switch mode power supply with Power Factor Correction (PFC) and standby converter |
| Operating Voltage/Frequency | Universal Mains, 100 V – 240 V, 50 Hz – 60 Hz |
| Standby Consumption | <0.5W |
| Accessories | Rack mount kit (pre-installed) |
| Power Ratings | 1% THD @ 120Vac and 230Vac |
| Cabinet Finish | Black Anodised |
