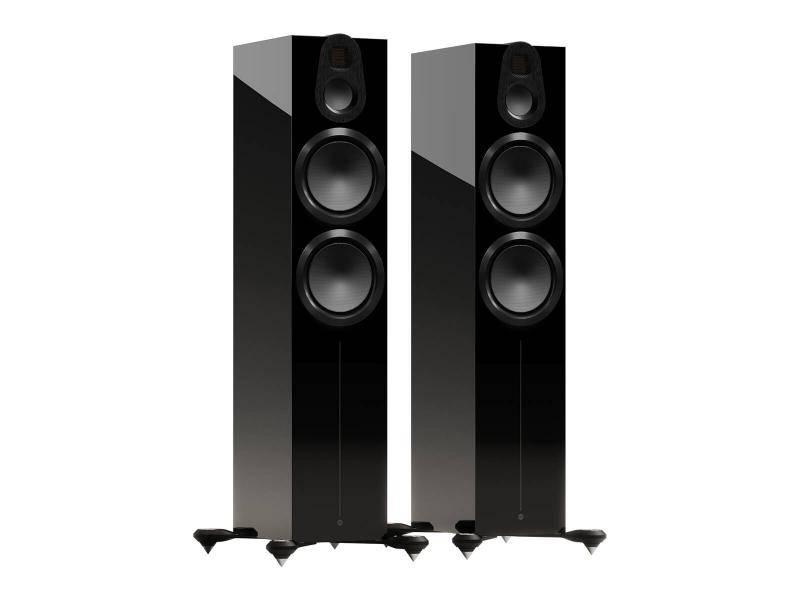

The flagship Gold 500 6G is engineered to deliver the very highest levels of performance. It features the latest MPD III high-frequency transducer alongside an HDT, C-CAM 3-inch mid-driver and twin 8-inch bass drivers.
The Gold 500 6G is the flagship model of the new Gold Series 6G. It represents the highest-levels of performance and system design at the price point, and within this competitive market segment. Designed to house the latest MPD III high-frequency transducer alongside the new 3-inch mid-driver and powerful twin 8-inch bass drivers, each of which benefit from the latest HDT, C-CAM cone technology and hugely powerful motor systems. The Gold 500 6G is a worthy flagship for such a prestigious range; a formidable acoustic treat for the ears as well as the eyes.
Key Features
- Three-way design
- 1 x MPD III high-frequency transducer
- 1 x 3-inch mid-driver featuring HDT, C-CAM cone technology
- Steel mid-pod enclosure with die-cast aluminium baffle
- 2 x 8-inch bass drivers featuring HDT, C-CAM cone technology
- New crossover design utilising carefully selected high-quality capacitors
- Ported cabinet design using HiVe II port technology and through-bolt technology
- All-new cast aluminium outriggers and plinth/spike assembly featuring a new steel plate for greater structural integrity and improved stability
- Finishes available: Macassar wood veneer, High-Gloss Black and Satin White

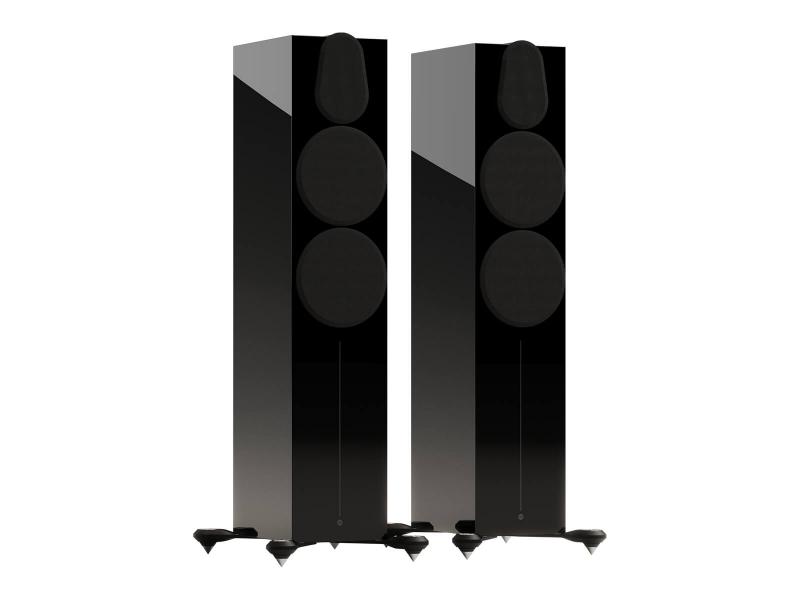

- Individual driver ‘Magnetic grilles’ included
| Specifications | |
|---|---|
| System Format | 3-way |
| Sensitivity (2.83v @ 1m, Free-Field) | 88.5 dB |
| Sensitivity (2.83v @ 1m, Installed) | N/A |
| Recommended Amplifier Power (RMS into 4 Ohm, Music Signal) | 130 – 600 W |
| Continuous Power Handling (CTA 426-B) | 300 W |
| Nominal Impedance | 4 Ohms |
| Minimum Impedance (20Hz to 20kHz) | 4 Ohms @ 150 Hz |
| Drive Unit Complement | 2 x 8” (203 mm) HDT C-CAM Bass Drivers 1 x 3” (76 mm) HDT C-CAM Mid-Range Driver 1 x MPD III Tweeter |
| Frequency Response Free-Field (-6dB) | 44 Hz – 60 kHz |
| Frequency Response, In-Room (-6dB) | 25 Hz – 60 kHz |
| Maximum Peak SPL (AES75, Z-weighted) | 122 dB |
| Bass Alignment | HiVe II Ported |
| Port Tuning Frequency | 33 Hz |
| Crossover Frequency | LF/MF: 700 Hz MF/HF: 2.6 kHz |
| External Dimensions with all accessories fitted (H x W x D) | 1155 x 383 x 475 mm (451/2 x 151/16 x 1811/16”) |
| Weight (each) | 26.5 kg (58 lb 7 oz) |
| Sold As | Pair |
