24" Frigidaire Panel Ready Built-In Dishwasher - FDSR4501AP
You may also like
Features

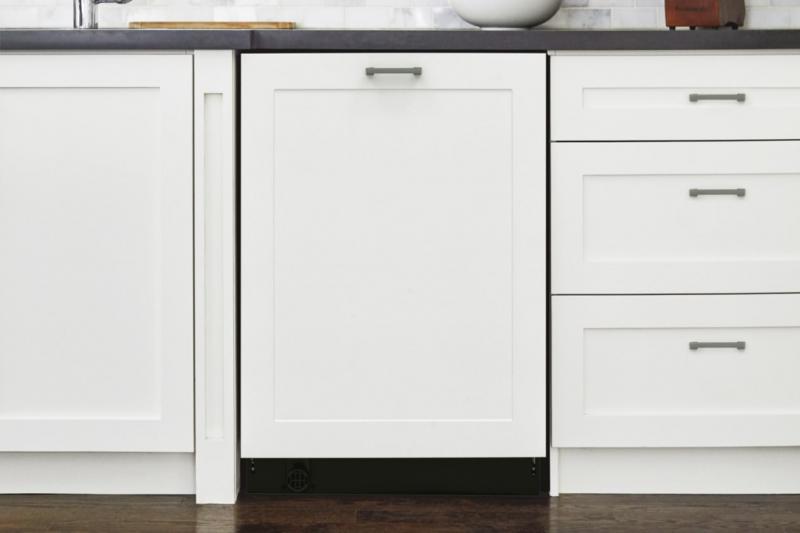

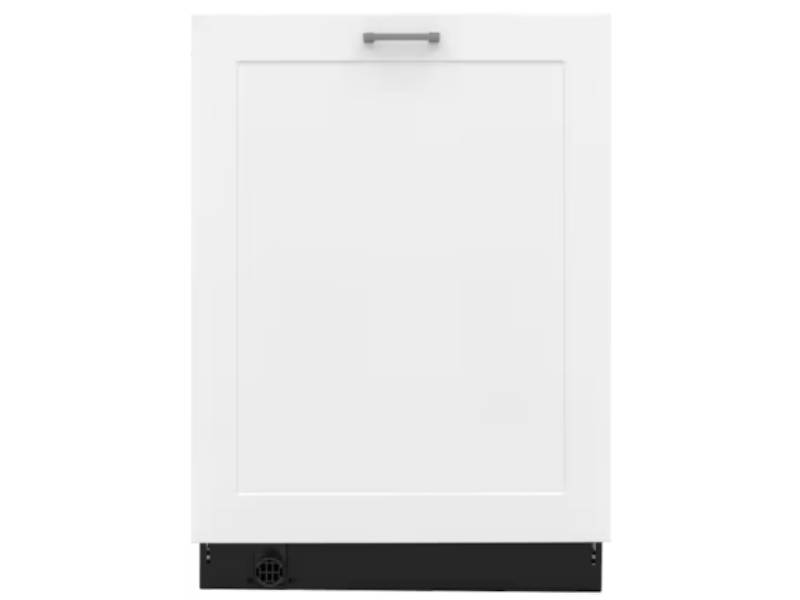

Panel Ready Design
Install a custom front panel and handle (panel and handle not included) over the dishwasher door to effortlessly create a built-in look that blends into your kitchen cabinetry.
Thorough Cleaning with BladeSpray Arm
Unlike traditional spray arms, our BladeSpray arm rotates in two directions, so you get better water coverage that reaches every corner.

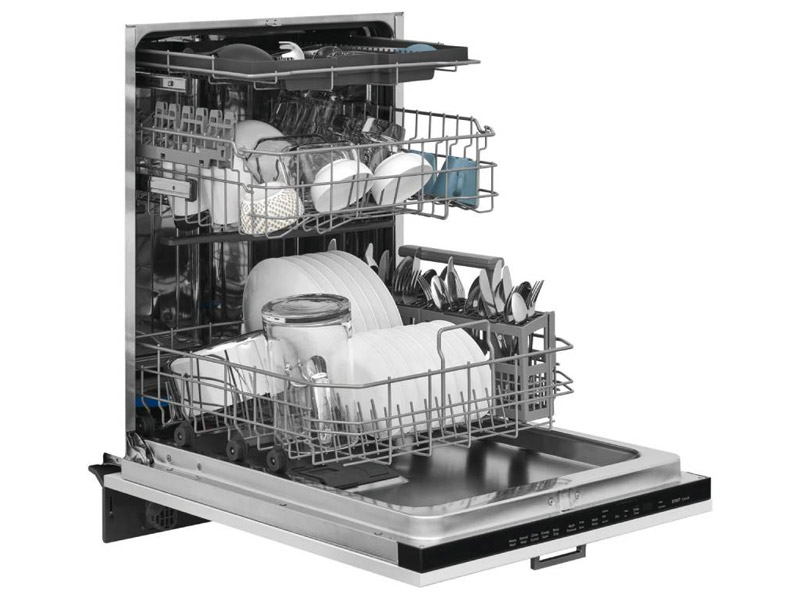

Three Level Dishwasher
Save time loading and unloading and fit more with a third level rack that easily fits silverware, cooking utensils and tools.
Remarkably dry dishes
With the fan assisted EvenDry, air flow is evenly circulated and moisture is removed for clean, spot-free dishes.
DishSense Technology
Skip pre-rinsing with our DishSense sensor technology that adjusts cleaning performance based on the soil level of your dishes.
NSF Certified Sanitize Option
Sanitize option removes 99.9% of common household bacteria. 1

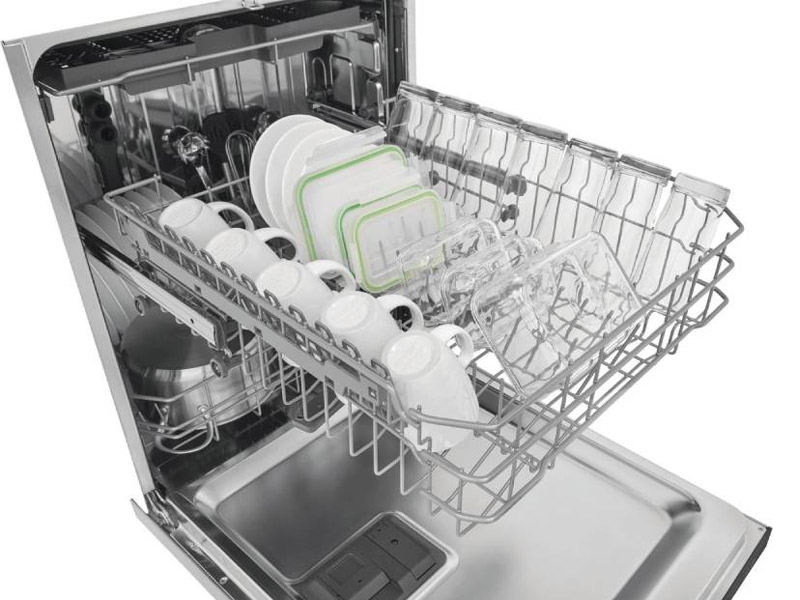

Clean Dishes of All Sizes
Clean even your largest dishes and bakeware with an adjustable upper level rack that lets you fit more in the bottom rack.
Quiet Operation
So quiet your dishwasher won't disturb you, even if you run it while you're in the room--runs at 49 dBA.
ENERGY STAR Certified
Maximize your energy and dollar savings with ENERGY STAR Certified Appliances.
Zero Waste to Landfill Factory
This dishwasher was assembled in a certified zero waste to landfill facility. Electrolux's goals is for all of our production facilities to be certified by 2025. 2
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| Voltage Rating | 120 V |
| Amps @ 120 Volts | 15 Amps |
| Certifications and Approvals | |
| ADA Compliant | No |
| ENERGY STAR Certified | Yes |
| CEE Tier | Tier 1 |
| UL Listed | Yes |
| cUL Listed | Yes |
| ETL Listed | Yes |
| NSF Certified | Yes |
| Installation | |
| Number of Leveling Legs | 3 |
| Dimensions and Volume | |
| Depth With Door Open | 50 1/4 |
| Depth | 24 1/4 |
| Width | 24 |
| Maximum Height | 35 3/4 |
| Minimum Height | 33 3/4 |
| CONTROLS | |
| Delay Start Hours | 1-24 Hours |
| Digital Display | No |
| Control Location | Top |
| Exterior | |
| Panel Ready | Yes |
| General Specifications | |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Prop 65 Label | No |
| Product Weight | 85 lbs |
| Sound Level | 49 dBA |
| Annual Energy | 240 kWh |
| Third Level Rack | |
| Third Level Rack | Yes |
| UPPER RACK | |
| Targeted Wash Zone | No |
| Stemware Holder | Yes |
| Rack Type | Deluxe |
| Rack Coating | Nylon |
| Cup Shelf | Yes |
| LOWER RACK | |
| Rack Coating | Nylon |
| Rack Type | Deluxe |
| Number of Silverware Basket Lids | 2 |
| Number of Silverware Basket | 1 |
| Dishwasher Options | |
| Washing Temperature - Sanitize | Yes |
| Start/Cancel | Yes |
| Washing Temperature - High | Yes |
| Washing Temperature - Normal | Yes |
| High Temperature | No |
| Drying System | Even Dry |
| Dry - Heat | Yes |
| Dry - Max | No |
| Dry - Air | Yes |
| Dishwasher Cycles | |
| Normal | Yes |
| Rinse Only | Yes |
| Number of Cycles | 5 |
| Energy Saver | Yes |
| Heavy | Yes |
| China Crystal | Yes |
| DISHWASHER | |
| Water Pressure | 120 psi |
| Wash System | Direct Feed |
| Tub Material | Stainless Steel |
| Wash Levels | 5 |
| Tub Design | Tall Tub |
| Tub Color | Stainless Steel |
| Upper Spray Arm | Spray Arm |
| Middle Spray Arm | Bi-Beam |
| Lower Spray Arm | Blade |
| Smart Soil Sensor | Yes |
| Place Setting Capacity | 14 |
| Rinse Aid Dispenser | Yes |
| Motor Speeds | Multi-Speed |
| Filtered Water | 100 % |
| Hard Food Disposer or Filtration | Yes |
| Filter Trap | Removable |
| Filter Material | Stainless Steel |
| Detergent Dispenser | Yes |
| Automatic Temperature Control | Yes |
