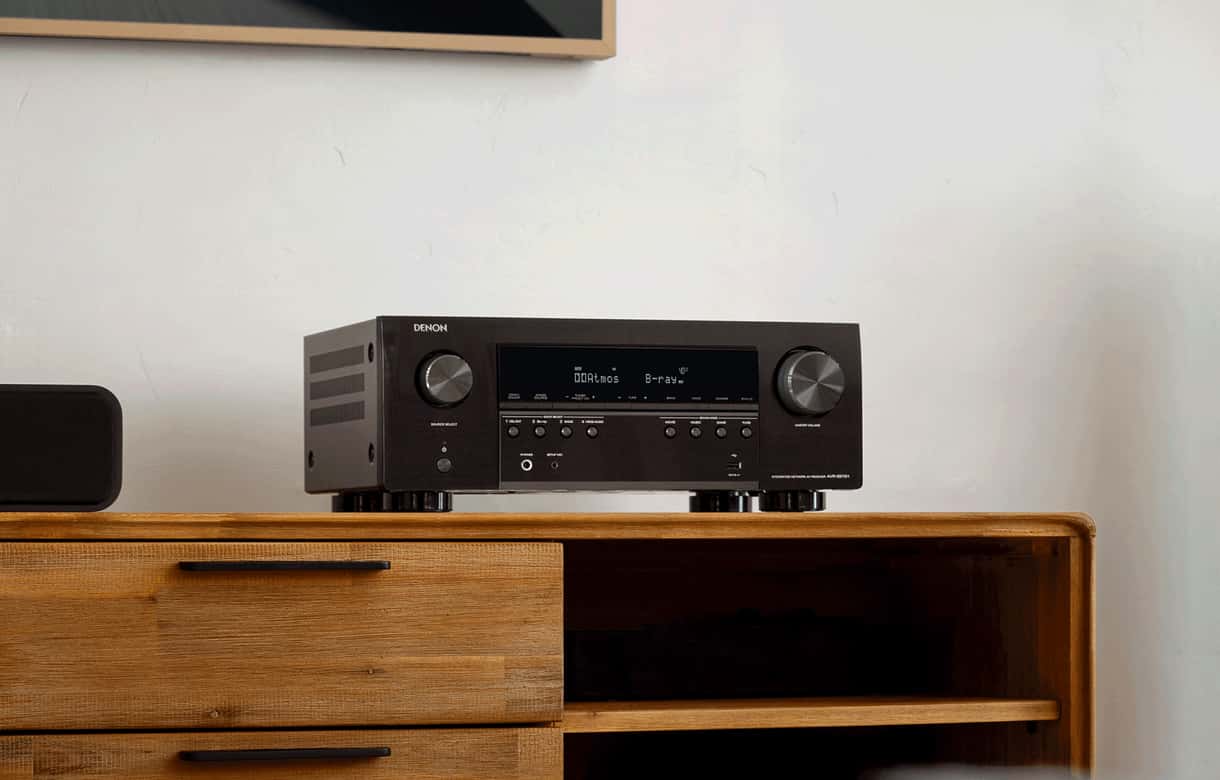

Denon 7.2 Channel AV Reciever with 8K Video and 3D Audio Experience - AVRS970H
You may also like
Enjoy incredible 8K video and enveloping 3D audio from the AVR-S970H. Fill medium-size rooms with more refined sound from a 7.2 or 5.2.2 setup with Dolby Atmos and DTS:X. And with HEOS® Built-in, wirelessly stream online music and share with HEOS-enabled speakers in other rooms.
Powerful sound
Fill a medium-size room with powerful, more refined sound.
Immersive 3D audio
Feel fully immersed in your music or movie sound.
Geared for 8K
Enjoy amazing video quality from the latest 8K technology available.
Music streaming throughout your home
With HEOS® Built-in, easily access streaming music and share with HEOS-enabled speakers in other rooms.
High-performance discrete 7-channel amplifier
Discrete high-current amplifiers on all channels to deliver up to 90W per channel (at 8 ohms, 20-20kHz, THD 0.08%)—enough power to drive any speaker.
Immersive audio experience
Get immersed in music and movies with Dolby Atmos® and DTS:X® plus Dolby Surround and DTS Neural:X upmixer to optimize older content.
Advanced 8K home theater
8K video is supported on three of six HDMI inputs and one of the two outputs. Enjoy easy video compatibility and great picture quality with HLG, HDR, Dolby Vision, HDR10+, and Dynamic HDR pass-through.
HEOS® Built-in technology
Stream music wirelessly to compatible HEOS-enabled components from a variety of streaming services. Add Denon Home speakers to more rooms and control it all with the HEOS app.
DETAIL VIEW
- Input Selector. Select from six HDMI connected devices, plus CD, phono, USB, Bluetooth, AM/FM, HEOS, and TV audio.
- Headphone Jack,Connect your favorite headohone or use Bluetooth to connect your Bluetooth headphones wirelessly.
- Quick Select Buttons. By pressing one of the four Quick Select buttons on the front panel or on the remote, you can easily store and retrieve your favorite audio settings such as an input source, volume level, and sound mode for your convenience. Long-press to store your preferred audio settings. Short-press to retrieve stored audio settings.
- Large Display. Use the status button to change the large and clear display or dimmer button to dim the light.
- USB Input.Enjoy your favorite music stored on a USB drive. MP3,WMA,WAV,FLAC,and ALAC are all supported.
- Master volume Control.Enjoy engineering precision and a powerful yet detailed Denon sound signature.
BACK PANEL
- Dual Subwoofer Outputs. Connect up to two subwoofers for more balanced bass performance throughout the room.
- HDMI Inputs.Support six HDMI inputs and two outputs with three dedicated 8K/60Hz, 4K/120Hz capable inputs.All inputs support HDR, HLG, Dolby Vision,HDR10+,Dynamic HDR passthrough,and 8K upsacaling.
- HDMI Output.supports eARC for simplified TV audio connection, HD, and 3D audio transmission.
- Speaker Terminals.Connect up to seven speakers for 5.1.2 Dolby Atoms setup. You can also choose 7.1 floor only or 5.1+2.multi-zone speaker setup.
- Dual Wi-Fi Antenna.Dual antenna for solid Wi-Fi connectivity even in congested environments.
| Multichannel Surround | |
|---|---|
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music | Yes, Yes, Yes, Yes |
| DTS Neo:X, DTS Neural:X | No, Yes |
| DTS Virtual:X | Yes |
| DTS HD Master, DTS:X, DTS:X Pro | Yes, Yes, No |
| Max. Number of Processing (Pre-Amp) Channels | 7.1 |
| Multichannel Stereo | Yes |
| Dolby ProLogic Ilz, Dolby Surround | No, Yes |
| Sound Enhancements | |
| Pure Direct | Yes |
| Audyssey | MultEQ |
| Discrete Power Amplifier | Yes |
| Audyssey Dynamic EQ, Dynamic Volume | Yes, Yes |
| Compressed Audio Restorer | Yes |
| Network | |
| DSD Audio Streaming | Yes (2.8/5.6MHz) |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) | Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV | Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC | Yes, Yes, Yes |
| Alexa / Google Voice Assistant / Apple HomePod | Yes, Yes, Yes |
| HEOS Wireless Multi-Room Technology | Yes |
| Media Server | Yes |
| Spotify Connect | Yes |
| AirPlay 2 | Yes |
| TuneIn | Yes |
| Pandora | Yes |
| Compatible with Remote APP for Smart Phones | Denon 2016 AVR Remote |
| HEOS App Control | Yes |
| SiriusXM* | Yes |
| Roon Tested | Yes |
| Bluetooth | Yes |
| Wi-Fi | Yes |
| Ethernet Ports | Yes |
| HDMI | |
| ALLM (Auto Low Latency Mode) Pass-through for gaming | Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR | Yes , Yes, Yes, Yes, Yes |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB | Yes, Yes |
| HDMI Outputs: Main, Zone | 2 / No |
| HDCP2.3 support | Yes |
| HDMI Inputs: Back, Front | 6, No |
| 3D Signal Pass-through | Yes |
| Variable Refresh Rate, Quick Flame Transport, Quick Media Switching | Yes, Yes, No |
| 8K Signal Pass-Through, Scaling, GUI Overlay | Yes, Yes, Yes |
| Auto LipSync | Yes |
| Audio Return Channel (ARC), Enhanced ARC | Yes, Yes |
| Multi-room CI | |
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog | Yes (2ch), Yes (2ch), Yes, Yes |
| Multi-Room Zones | 2 |
| HDMI Diagnostics | Yes |
| Remote In / Out | No, No |
| IP Control, RS232 Control, Web Control, App Control | Yes, No, Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out | Yes, No |
| OTHERS | |
| GUI Languages | 3 |
| Front Display | 1-Line FLD |
| Auto Speaker Setup by Microphone | Audyssey MultEQ |
| Variable Crossover | Yes |
| Quick Select Plus, Quick Select | Yes, No |
| Setup Assistent | Yes |
| Optimized Bass Redirection | Yes |
| Sleep Timer | Yes |
| Auto Power Off | Yes |
| ECO Mode | Yes |
| Inputs Outputs | |
| HDMI In, Out | 6, 2 |
| Multi-Room Video Out: Video, HDMI | No, No |
| Multi-Room Speaker Terminal | Assignable |
| Number of Speaker Terminals | 7 |
| Subwoofer Out | 2 |
| Speaker Terminal: Gold-Plated Screw, Regular Screw | No, Yes |
| Multichannel Preout | Yes (0.2) |
| Multi-Room Out: Analog, Digital | No, No |
| Digital In: Optical, Coaxial | 2, 1 |
| Phono (MM) In | Yes |
| Analog In, Out | 4, No |
| USB Audio, Made for iPod, Made for iPhone | Yes, No, No |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB | No, No, No, No, Yes |
| AM/FM Tuner | Yes |
| Specifications | |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) | 90W |
| Number of Power Amps | 7 |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) | 125W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) | 185W |
| GENERAL | |
| Network Standby Consumption in W | Less than 2.0 |
| CEC Standby Consumption in W | 0.5 |
| Standby Consumption in W | 0.1 |
| Power Consumption No-Sound (ECO On / Off) in W | 35W/75W |
| Power Consumption in W | 500 |
| Pre-Programmed, Learnable, LCD Display | No, No, No |
| System Remote Control | RC-1253 |
| Maximum Dimensions Antenna: Horizontal: (W x D x H) in Inches Antenna: Vertical: (W x D x H) in Inches W/O Antenna: (W x D x H) in Inches | 17.1 x 13.4 x 6.6 ( 17.1 x 13.4 x 9.3 ) 【 17.1 x 13.0 x 6.6 】 |
| Weight in LBS | 21.0 |
| Weight in LBS (Packaging) | 25.4 |
