Rotel Multi Room Hi-fi Amplifier in Black - C8

SKU : C8

$3,199.00
Scheduled Delivery
Contact Us For Availability, Limited Quantities May Be Available
Contact Us

Literature

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads.

The C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings.  The custom 2U height requires no top or bottom clearance when rack mounting.

Engineered with care.


  • DIMENSIONS (W × H × D): 430 × 97 × 414mm , 17" × 3.9" × 16.3"
  • FRONT PANEL HEIGHT: 2U / 88.1mm (3.5")
  • POWER REQUIREMENTS: 120V, 60Hz
  • POWER CONSUMPTION: 570W
  • STANDBY POWER CONSUMPTION:Normal: <0.5W
  • Network Standby: <2W
  • NET WEIGHT: 16.7kg (36.81lbs.)
  • BTU RATING (4Ω, 1/8th power)1537 BTU/h

MAXIMUM POWER OUTPUT

  • 70W/Ch (8 channels driven, 4Ω)

CONTINUOUS POWER OUTPUT

  • 50W/Ch (8 channels driven, 8Ω)

TOTAL HARMONIC DISTORTION (THD)

  • <0.1%

FREQUENCY RESPONSE

  • Line Level Inputs: 10Hz - 100kHz, +0dB, 0
  • ± 0.5dB

S/N RATIO (IHF "A" Weighted)

  • Line Level Inputs: 100dB

Product Description

Performance meets efficiency in Rotel’s C8 Class AB Custom Installation Amplifier, driving 8- channels of premium audio at 70 Watts per channel, or bridged at 140 Watts into 4-ohm loads utilizing Rotel’s proprietary amplification technology.

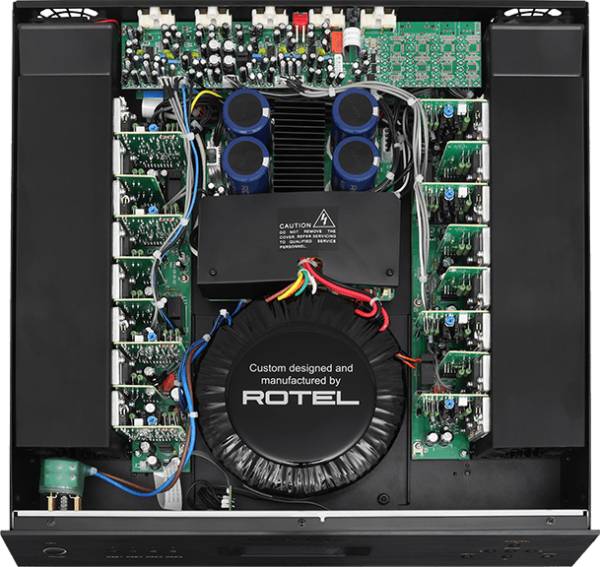

The oversized in-house manufactured toroidal transformer drives sixteen output devices for effortless, controlled bass energy.

For ultimate installation flexibility the C8 includes 4 Analog inputs matrixed to all Zones. Front panel display and controls provide source and independent volume, bass and treble settings.

Control system integration is available via IP and RS232 interfaces and 12-Volt trigger.

The custom 2U height requires no top or bottom clearance when rack mounting.

The C8 is available in black only.

Specifications
CROSSTALK / SEPARATION>50dB
DAMPING FACTOR (20Hz - 20kHz, 8Ω)80
INTERMODULATION DISTORTION (60Hz:7kHz, 4:1)<0.1%
INPUT OVERLOADLine Level Inputs (RCA): 2.8V
INPUT IMPEDANCELine Level Inputs: 31kΩ
INPUT SENSITIVITYLine Level Inputs: 0.3V
TONE CONTROLS± 10dB at 100Hz / 10kHz
