Monitor Audio Creator Series In-Wall Loudspeaker - CSW1ME
You may also like

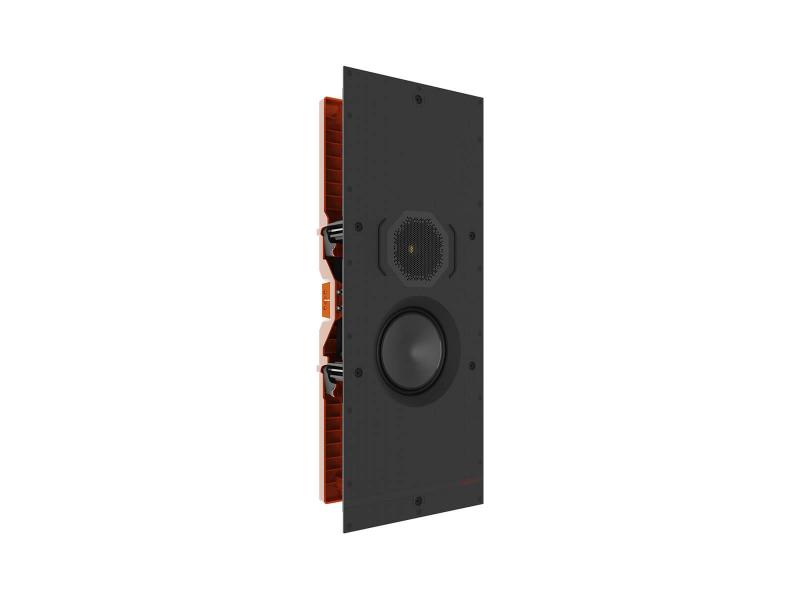

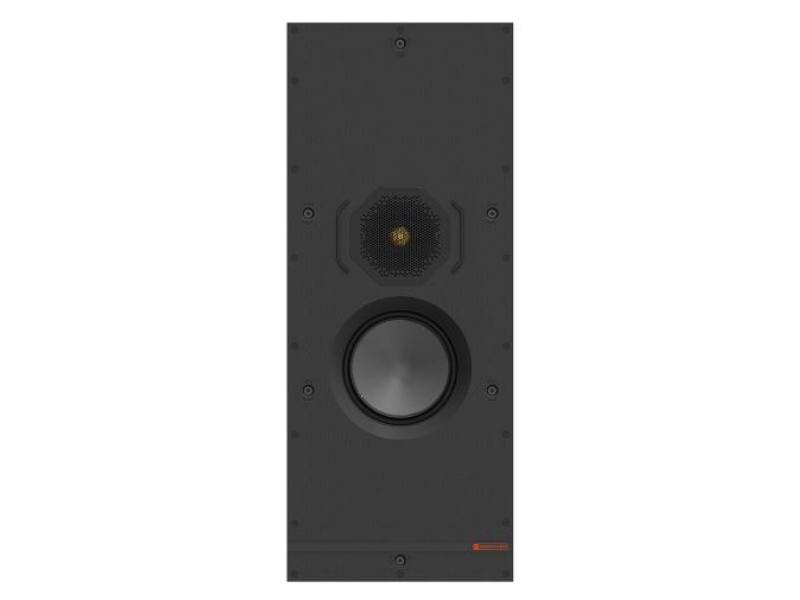

This medium-sized Tier 1 in-wall loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 527 x 198 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This medium-sized Tier 1 in-wall loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 527 x 198 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x 1" (25 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 5" (127 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
| Specifications | |
|---|---|
| Channels | 1 |
| System Format | 2–Way |
| Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 50 W |
| Maximum Peak SPL* (single speaker @ 1m Z-Weighted) | 110 dB |
| Sensitivity (2.83Vrms@1m, Installed) | 84 dB |
| Minimum Impedance (20Hz to 20kHz) | 6.5 Ohm @ 200 Hz (6.2 Ohm @ 20 kHz) |
| Nominal Impedance | 8 ohm |
| Frequency Response, Installed (-6dB) | 40 Hz – 30 kHz |
| Sold As | Single Unit |

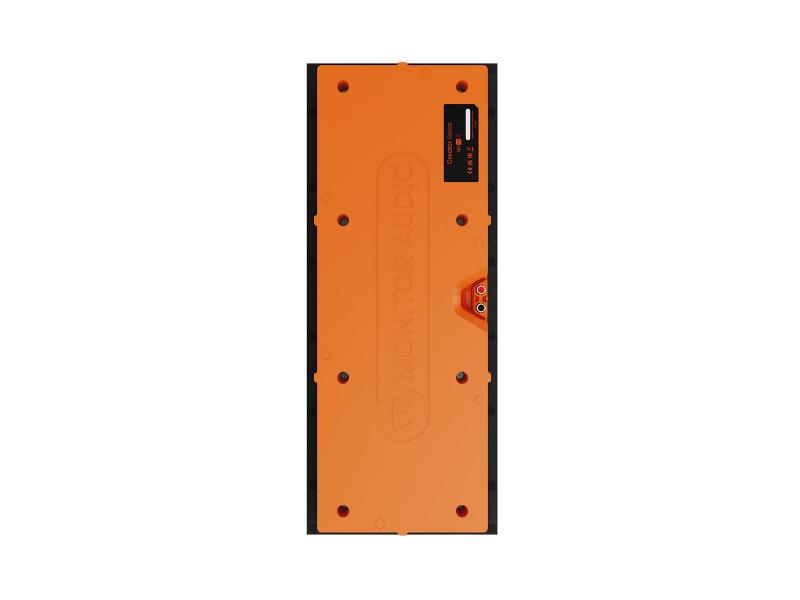

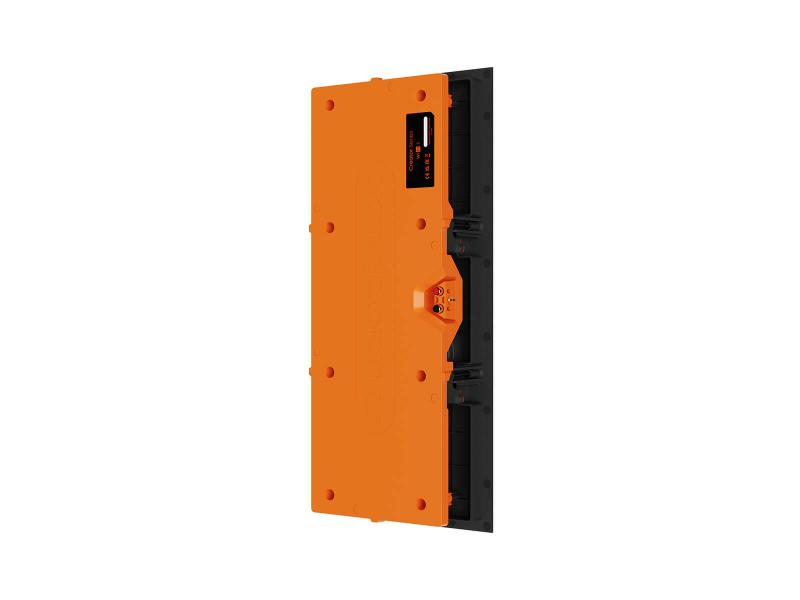

| Cabinet Finish | Matt black & Orange |
| Pre-Construction Bracket | WM-B |
| Weight (each) | 2.6 kg (5 lb 11 oz) |
| External Dimensions (Including Grille (H x W x D)) | 560 x 231 x 90 mm (221/16 x 91/8 x 39/16") |
| Cutout L x W | 527 x 198 mm (203/4 x 713/16") |
| Mounting Depth | 85 mm (33/8") |
| Crossover Frequency | LF/HF: 2.5 kHz |
| Drive Unit Complement | 1 x 5" (127 mm) C-CAM mid-bass driver 1 x 1" (25 mm) C-CAM tweeter |
| Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 25 – 100 W |
