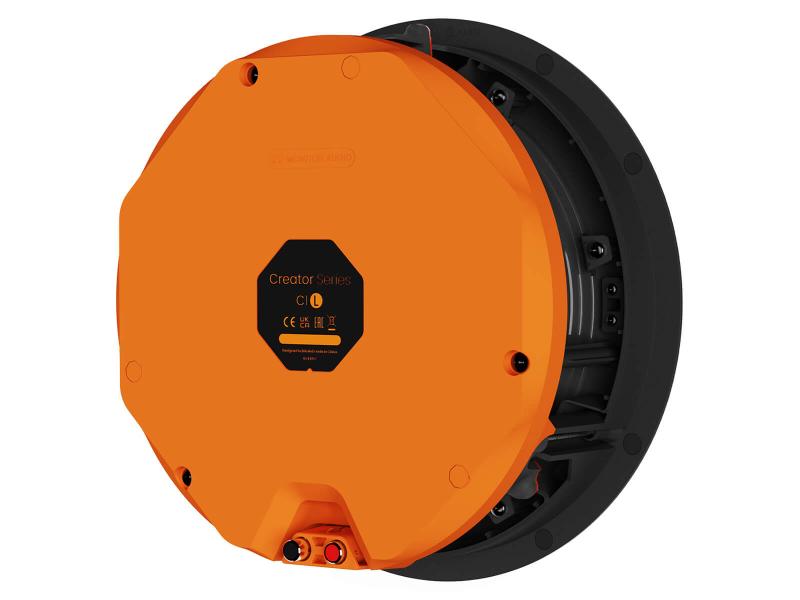

Monitor Audio Creator Series In-Ceiling Loudspeaker - CSC1L
![](/img/brandlogo/22_MonitorAudio.png)
This large Tier 1 in-ceiling loudspeaker is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. It has a cut-out dimension of 248 mm and revolutionary patented Quik-Link speaker cable connector and Tri-Grip II for quick, simple, reliable and strong installation and fitting.
This large Tier 1 in-ceiling loudspeaker is designed for cost-effective installations, where product simplicity and solid acoustic performance is required. It is a two-way model featuring a C-CAM mid-bass driver and C-CAM tweeter. The performance benefit of having both within a single design means greatly improved clarity, wider dispersion into the listening environment, and clear lifelike high-fidelity sound – of the quality you’d expect from any Monitor Audio passive box loudspeaker. It has a cut-out dimension of 248 mm and uses the patented Quik-Link speaker cable connecter, which revolutionises the ease and speed of speaker installation. Tri-Grip has also been evolved for simple, reliable and strong fitment.
Optional square grillecan be used with this model.
Key Features
- Ideal for cost-effective installations, where product simplicity and solid acoustic performance is required
- Two-way design
- 1 x1.25"(32 mm) C-CAM tweeter with UD Waveguide I for lifelike sound
- 1 x 9" (229 mm) C-CAM mid-bass driver for clear mid-range and full bass
- Patented Quik-Link speaker cable connector for quicker installation(UK patent application no. 2216966.8)
- Tri-Grip II for easy and secure fitment
Specifications | |
---|---|
Frequency Response, Installed (-6dB) | 30 Hz – 25 kHz |
Channels | 1 |
System Format | 2–Way |
Sold As | Single Unit |
Cabinet Finish | Matt black & Orange |
Pre-Construction Bracket | CL-B |
Weight (each) | 2.5 kg (5 lb 8 oz) |
External Dimensions (Including Grille (H x W x D)) | 278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16)" |
Cut-Out Hole Diameter | 248 mm (93/4") |
Mounting Depth | 99 mm (37/8") |
Crossover Frequency | LF/HF: 2 kHz |
Drive Unit Complement | 1 x 9" (229 mm) C-CAM mid-bass driver 1 x 1.25" (32 mm) C-CAM tweeter |
Recommended Amplifier Power (RMS into 8 OHM, Music Signal) | 40 – 150 W |
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor) | 75 W |
Maximum Peak SPL* (single speaker @ 1m Z-Weighted) | 116 dB |
Sensitivity (2.83Vrms@1m, Installed) | 88 dB |
Minimum Impedance (20Hz to 20kHz) | 6.4 Ohm @ 150 Hz |
Nominal Impedance | 8 ohm |
