30" Frigidaire Undercabinet Ventilation Hood - FCVW3062AS
30" Frigidaire UnderCabinet Ventilation Hood - FCVW3062AD
30" Frigidaire Undercabinet Ventilation Hood - FCVW3062AS
You may also like
Features
Filter Indicator Light
Keep your range hood running smoothly with the indicator light that reminds you when it's time to change your carbon charcoal filter.

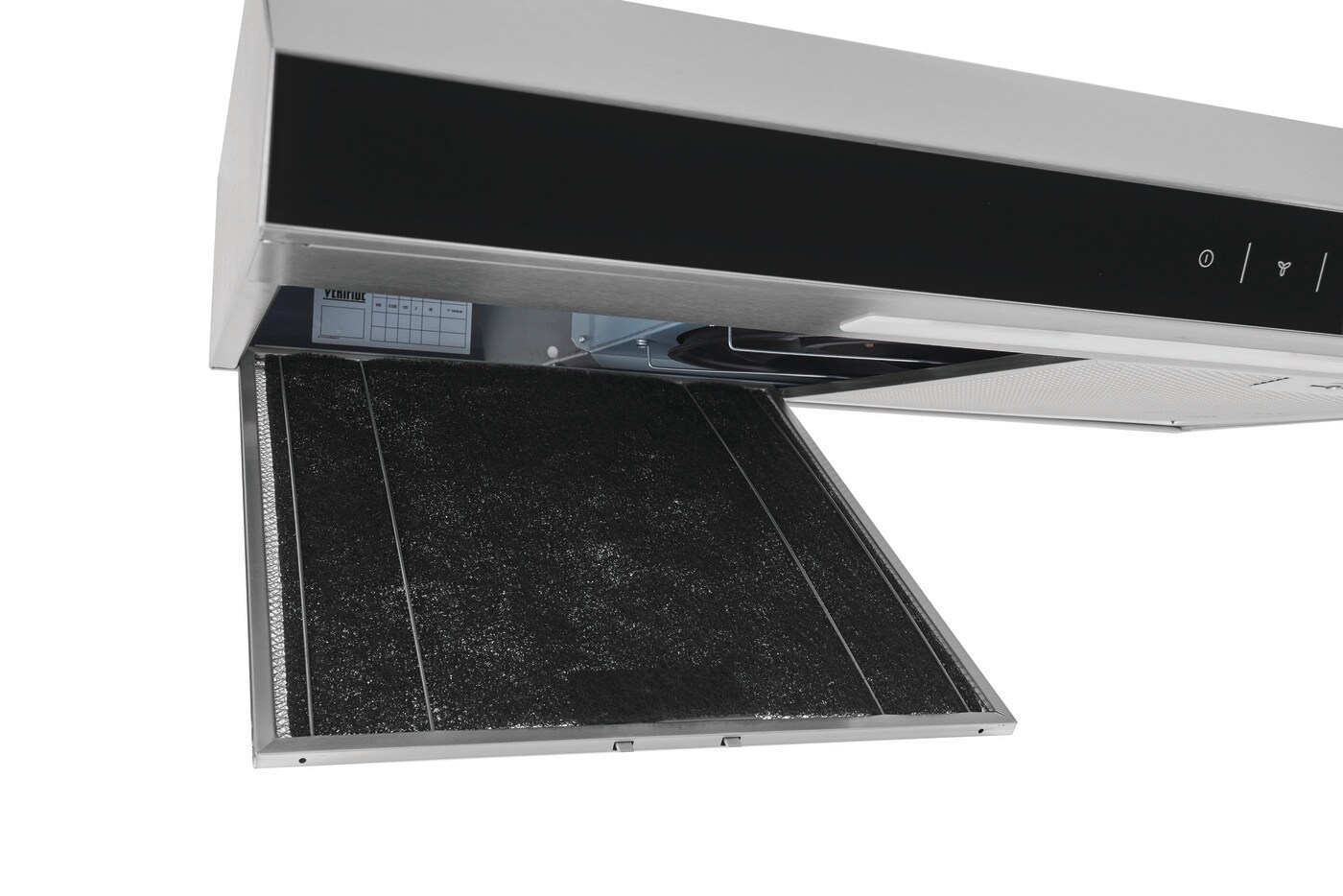

Carbon Charcoal Filter Included
Enjoy fresher air with the replaceable carbon charcoal recirculation filter, which captures odors and helps filter recirculated air from the exhaust fan.
Powerful Three Speed Ventilation Fan
Quickly move odors and steam away from the cooktop's surface with three levels of ventilation that recirculate air up to 330 CFM.

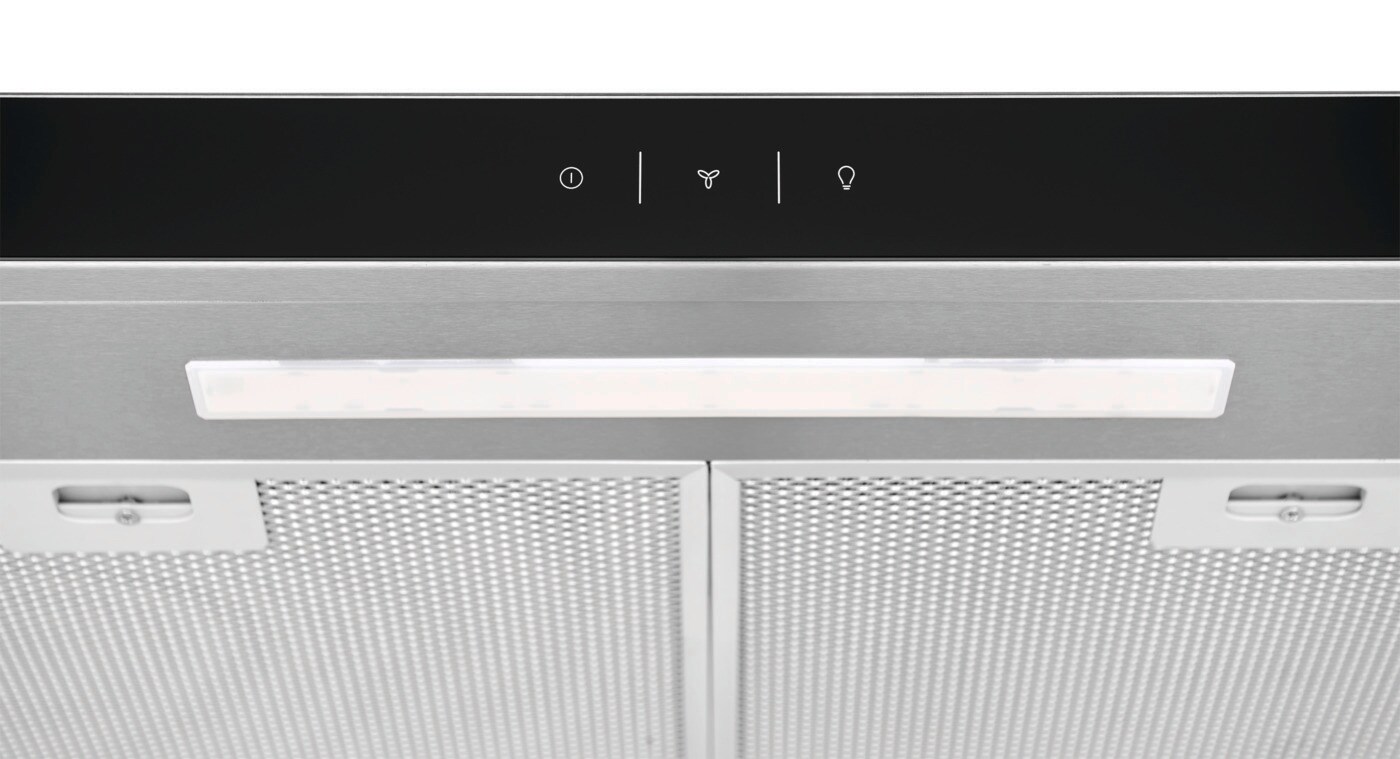

Bright LED Lighting
Get a clearer view of your cooktop with two LED lighting modes that illuminate the cooking surface.

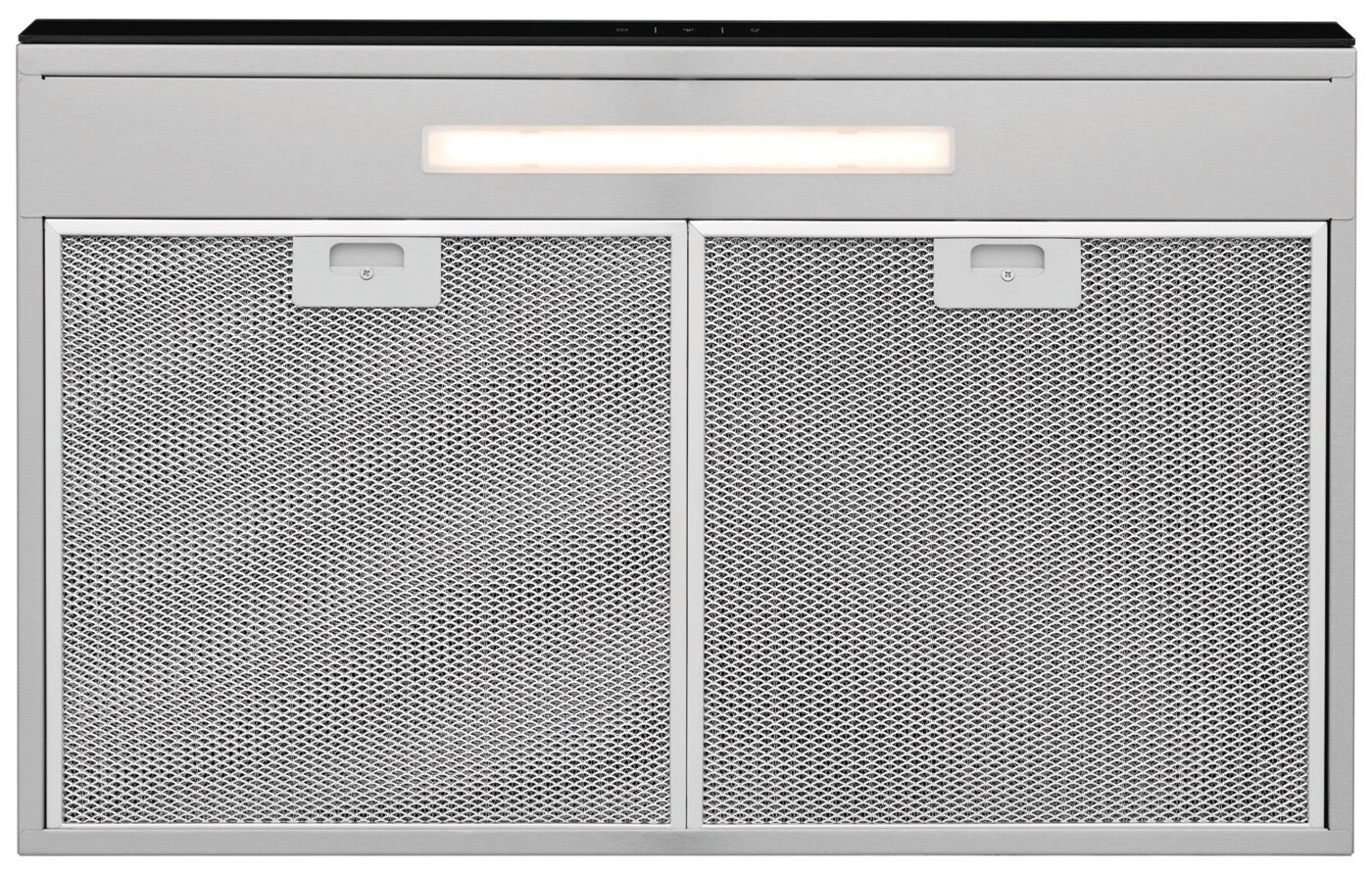

Dishwasher Safe Grease Filter
Easily clean the aluminum grease filter by putting it in the dishwasher.

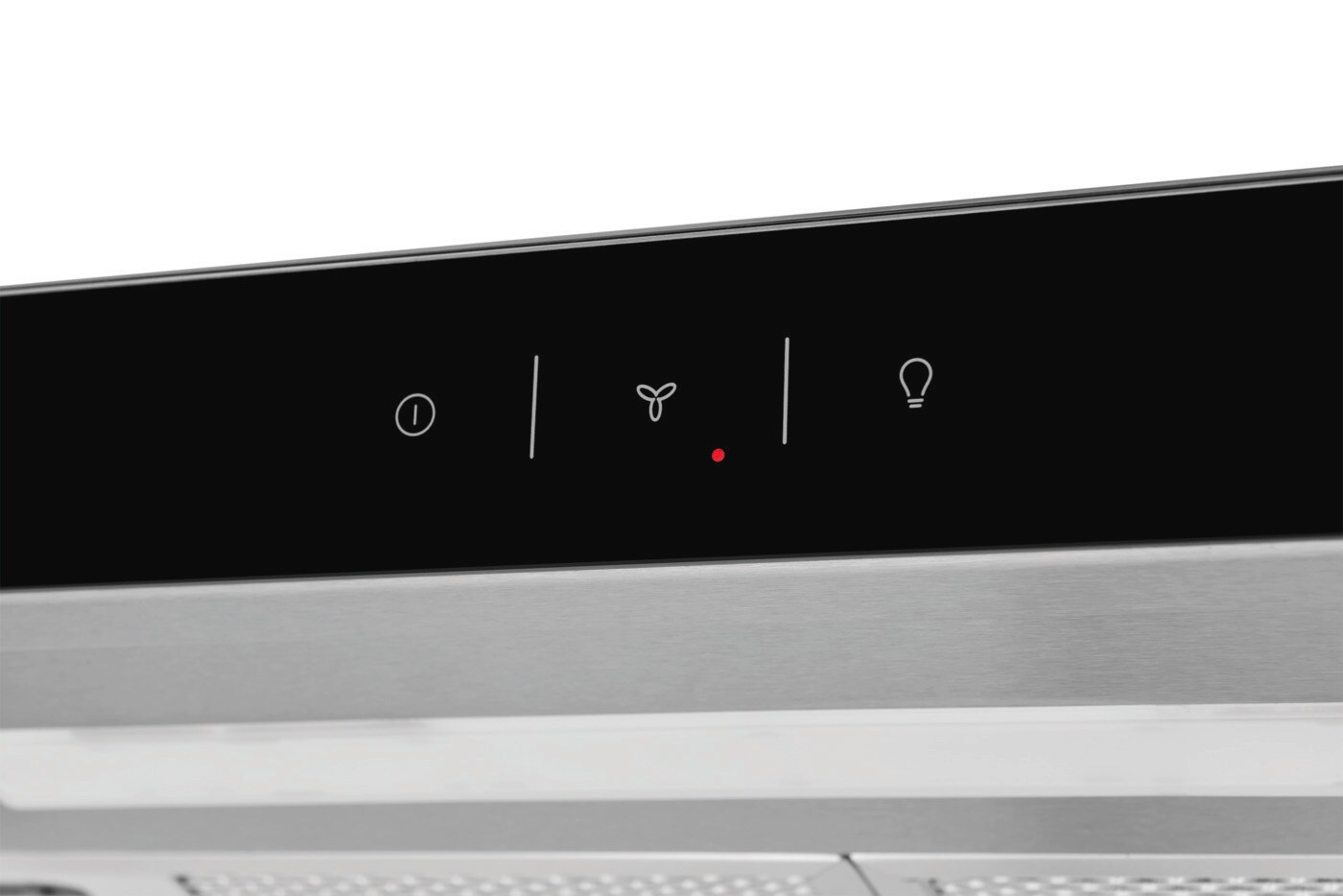

Capacitive Touch Control Panel
Easily adjust fan speed and lighting with responsive capacitive touch controls.
Convertible Design for Ducted or Ductless Installation
Designed to fit a variety of installation needs, this convertible range hood can be configured for ducted or ductless venting.
Convenient Operation with Power Button
Easily turn on/off the fan and light with the press of a button.

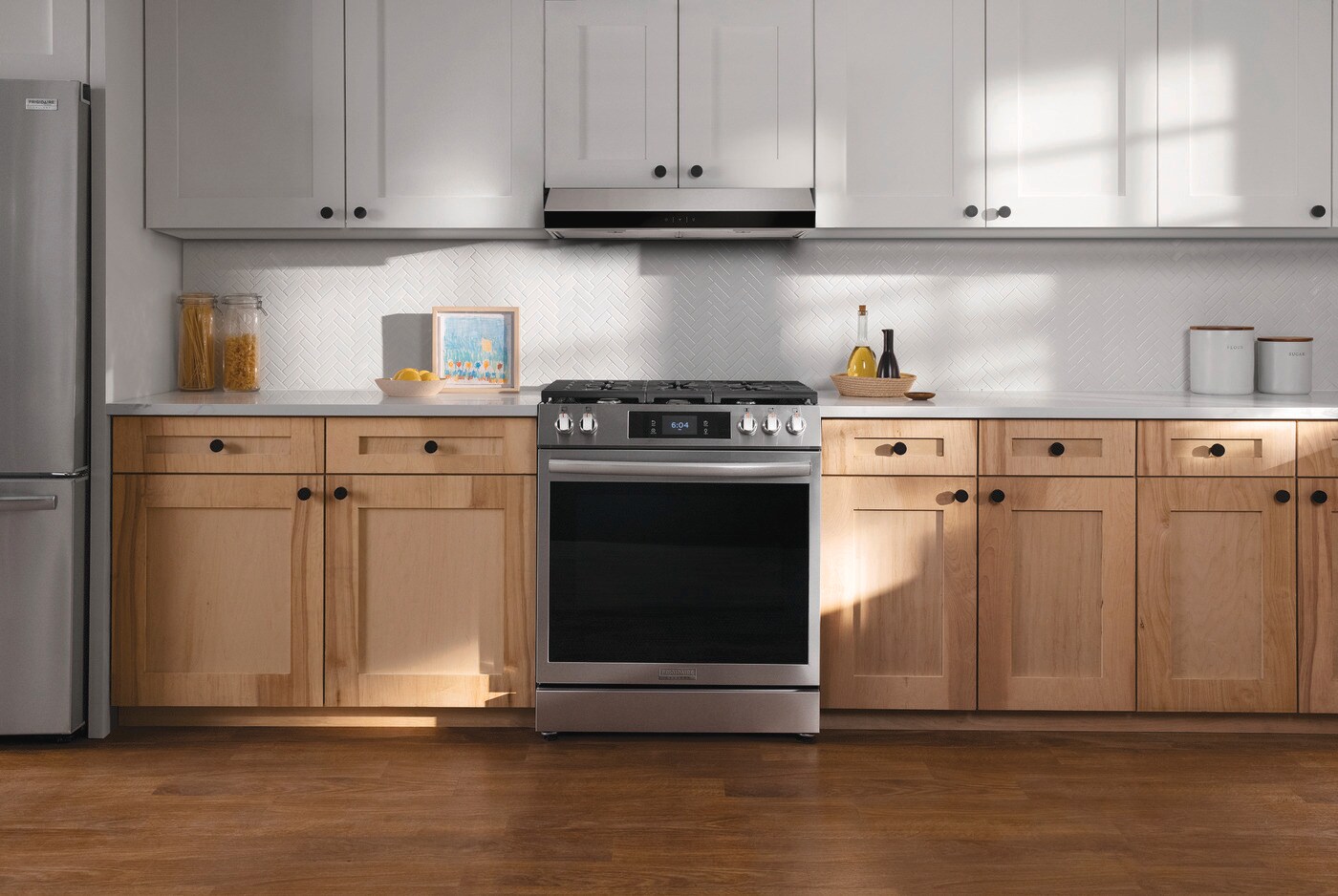

Stylish Built-in Look
Achieve a built-in look with this undercabinet vent made to coordinate with your existing range or cooktop.
| Certifications and Approvals | |
|---|---|
| cUL Listed | Yes |
| UL Listed | Yes |
| HVI Listed | Yes |
| General Specifications | |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | Yes |
| Product Weight | 13 lbs |
| Installation | |
| Power Supply Connection Type | Hard Wired |
| Hardwired | Yes |
| Duct Exit Location | Top |
| ELECTRICAL SPECIFICATIONS | |
| Watts @ 120 Volts | 114 Watts |
| Voltage Rating | 120 V |
| Dimensions and Volume | |
| Depth | 19 3/4 |
| Width | 30 |
| Height | 4 15/16 |
| Surface Light System | |
| Number of Light Settings | 3 |
| Number of Lights | 1 |
| Lighting Type | LED Strip |
| CONTROLS | |
| Filter Change Indicator | Yes |
| Control Type | Glass Touch |
| VENTILATION SYSTEM | |
| Charcoal Filter Quantity | 2 |
| Charcoal Filter Included | Yes |
| Grease Filter Dishwasher Safe | Yes |
| Grease Filter Type | Aluminum Mesh |
| Grease Filter Quantity | 2 |
| Grease Filter Included | Yes |
| Minimum Sones Rating | 1.7 sone |
| Maximum Sones Rating | 10.1 sone |
| Minimum Air Flow Capacity | 110 CFM |
| Exhaust Fan Speeds | 3 |
| Maximum Air Flow Capacity | 330 CFM |
| Ductless Vent | Yes - Out of the Box |
| Ducted Vent | Optional (See Manual) |
| Ventilation Options | Convertible |
